| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-CT4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Suitable To Process: | Color Steel Plate | Brand Name:: | Liming |
|---|---|---|---|
| Width Of The Plate: | 1250mm | Total Weight: | About 4.0 T |
| Wheel Material: | 45# Steel Hard Chrome Plating | Diameter Of Shaft: | Φ70,45#steel |
| Hydraulic Station Power: | 3kw | Color: | As Customers Requirement |
| Thickness: | 0.3-0.6 Mm | Warranty: | 24 Months |

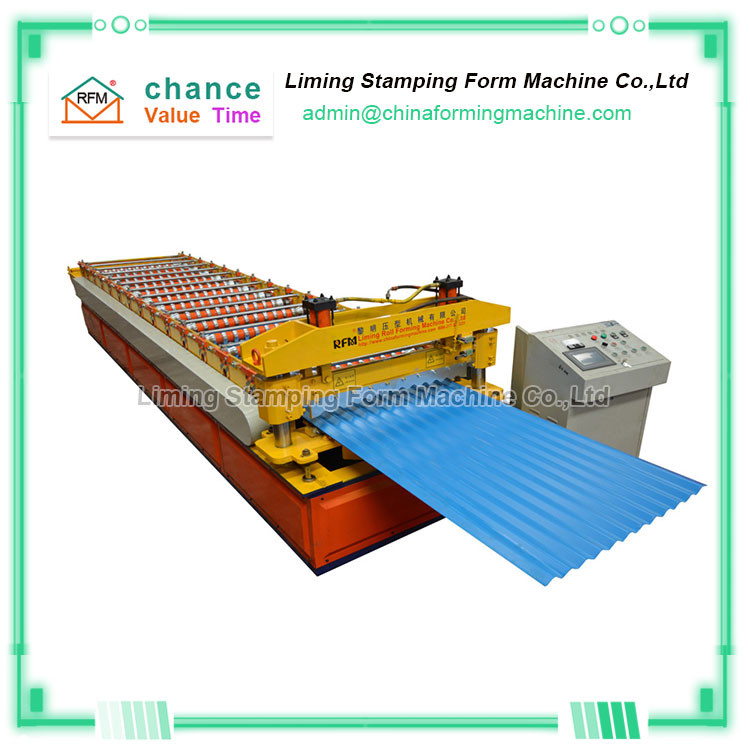

836mm Corrugated Tile Roofing Sheet Roll Forming Machine
836mm Corrugated Tile Roofing Sheet Roll Forming Machine iron roll forming is widely usedin the construction of various. Industrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three-dimensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.
Q1. What are the payment terms and delivery time of your836mm Corrugated Tile Roofing Sheet Roll Forming Machine?
A1: Pay a 30% deposit by wire transfer in advance. After and before you check the machine, 70% of the wire transfer balance will be used as a wire transfer
delivery. Of course your payment terms are acceptable. After we receive the down payment, we will arrange production. About 30-45 days
delivery.
Q2. I want to check your 836mm Corrugated Tile Roofing Sheet Roll Forming Machine up close, how can I visit your company?
A2: 1) Take a plane to Beijing Airport, from Beijing South to Cangzhou West (1 hour).
2) Fly to Shanghai Airport: Take a high-speed train from Shanghai Hongqiao to Cangzhou West (4.5 hours), and then we can pick you up.
Technical parameters of Metal Corrugated Tile Colored Steel Roofing Sheet Roll Forming Machine
| 836mm Corrugated Tile Roofing Sheet Roll Forming Machine | |
| Suitable to process | Color steel plate |
| Width of the plate | 1250mm |
| Rollers | 14rows |
| Dimensions | 7.8*1.5*1.2m |
| Power | 3+3kw |
| Thickness of the plate | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Diameter of the roller | Φ80mm |
| Weight | About 4.0 T |
| Voltage | 380V 50Hz 3phases |
| Rolling material | Carbon Steel 45# |
| Material of the cutting plate | Cr12 |
| Processing precision | Within 1.00mm |
| Control system | PLC control |
| Side panel of machine | 14mm |
| Main structure of the machine | 300 H steel |
