| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-rack 1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3Phases Or As Your Requirment |
|---|---|---|---|
| Condition: | New | Weight: | About 5T,4 Ton |
| Certification: | Ce Bv Iso Sgs | Color: | Customized |
| Plc: | DELTA(TAIWAN) | Core Components:: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
| Passive Discharge:: | Manual Tightening, Passive Discharge | Forming Machine Guide Feeding Frame Form:: | Side Sliding Type |
| Highlight: | Post Rack Roll Forming Machine,Fence Panel Rack Roll Forming Machine,15m/Min panel roll forming machine |
||
Steel Fence Panel Pallet Storage Rack Post Roll Forming Machine
SYSTEMS FOR UPRIGHTS FOR RACKING
We provide tailor-made roll forming machines for production of storage systems elements like the uprights for industrial pallet rack shelving. Our solutions for manufacturing shelving profiles permit to realize the complete set of shelving for various kind of application.
SYSTEMS FOR BEAMS FOR RACKINGS
Our lines for shelving production include special equipment for manufacturing of pallet rack beams.Beams for pallet racking are one of the key elements, our machines our design to produce each profile shape required.We ensure highest level of durability and safety offering equipment for production of best pallet rack systems in line with modern security and quality standards.
Technical Parameters of Steel Fence Panel Pallet Storage Rack Post Roll Forming Machine
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 1.0-2.0mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 7500mmx1600mmx1400mm |
| 8 | Speed | 8-15m/min |
| 9 | Diameter of shaft | 75mm |
| 10 | Weight of the Machine | 4000-4500KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 9.5kw |
| 15 | Power of hydraulic system | 5.5kw |
| 16 | Power of main molding core | 4kw |

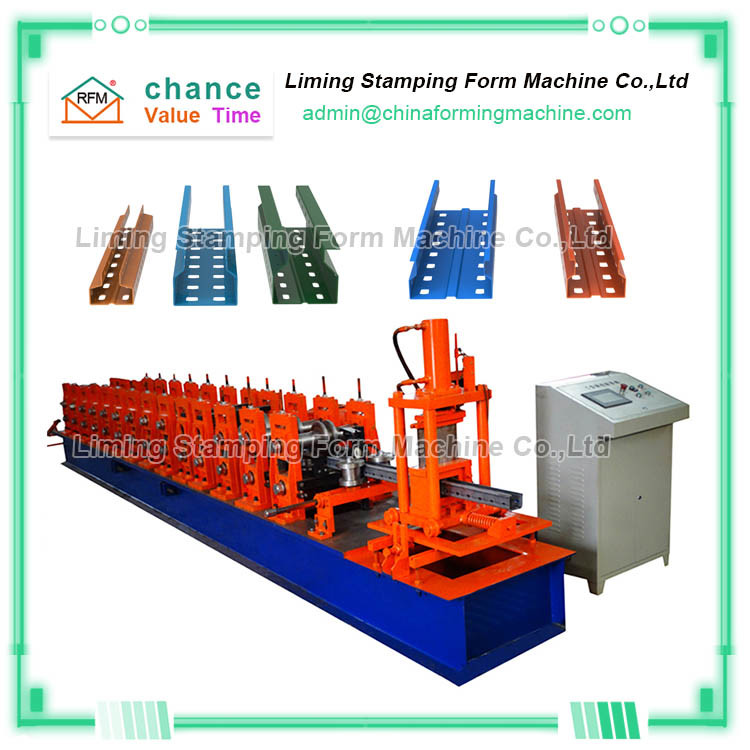

Rack post roll forming machine
