| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-LG-4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 150set/Year |
| Name: | Metal Angle Corner Bead Machine | Tile Type:: | Steel |
|---|---|---|---|
| Type: | Automatic | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 18 Month | Certification: | CE BV STV ISO |
| Thickness: | 0.3-0.7mm | Weight: | 2-3 Tons |
| Cutting Blade Material::: | Cr12 | Video Outgoing-inspection: | Provided |

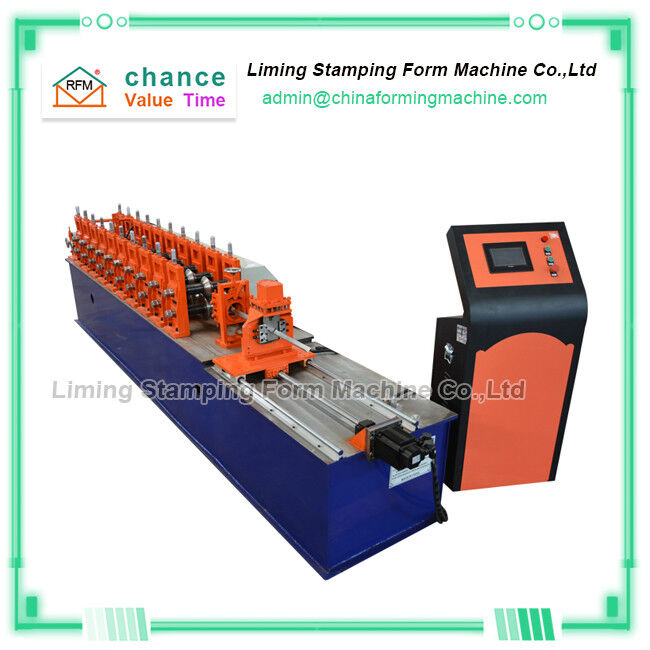

Construction And Decoration Non-Stop Cutting Angle Bead Machine
About Angle Bead: Angle Bear is also called angle bead angle bead. It is made of galvanized steel and stainless steel strips, which are rolled by Angle Bead Machine. Corner Bead can be against rupture or cracked in plaster of engineering, so that it can help to form straight line on the corner, and to protect and reinforce the most vulnerable parts of the mortar. The wing of the mesh also plays an important role to strengthen the mortar.Angle beads play an important role to the plaster whitewashing. Because the wall corner is always damaged easily in the process of construction. The Angle Bead can strengthen the wall of firmness. Angle Bead operation is convenient, easy and fast, so it can help the project save a lot of time.
Angle bead machine rolling raw materials:
Glavanized plate, Aluminum plate, fiberglass mesh.
Angle bead machine They are mainly used in the exterior of building materials and plaster walls or concrete corner decoration industry
Angle bead machine Application
They are mainly used in building materials and plasterwork for outside or corner of concrete columns of walls.
How to make use of Angle bead?
The first step of its installation is measuring and cutting the corner bead to length. The corner bead although not forced to fit, must span the entire length of the projected corner less approximately ¼ inch. This gap, small enough to be unnoticed by a stucco mortar applicator, is an insurance in case the structure settles before mortar application.
Since they are produced in maximum lengths of 3 m (10 ft.), any projected corner longer than 3m(10 ft). require at least two Angle Bead. The installation of Angle Bead to long corners is made easier through the use of a plumb line.
The Angle Bead machine Production Line include these five patrs:
1.collector of Angle Bead
2.Angle making part
3.Electric Controller
4.Metal Expander,uncoiler
Construction And Decoration Non-Stop Cutting Angle Bead Machine technical parameters
| 1 | Suitable material | galvanized steel coil |
| 2 | Thickness of coil sheet | 0.3-0.5mm |
| 3 | Coil width | as customer's profile drawing requirement |
| 4 | Effective width | as customer's profile drawing requirement |
| 5 | Material of main frame | welded by square pipe |
| 6 | Diameter of Soild shaft | 40mm, high grade 45# steel |
| 7 | Roller | Cr12 |
| 8 | Thickness of middle plate | Memorial archway |
| 9 | Forming station | 8-15 rows |
| 10 | Drive type | Gear |
| 11 | Power of main motor | 4.0 kw, GUOMAO,SIEMENS with reducer |
| 12 | Servo motor | 2.2KW Touch-win |
| 13 | Forming speed | About 25-30m/min |
| 14 | Hydraulic pump station | 4.0 kw, 46# hydraulic oil |
| 15 | PLC | Touch-win |
| 16 | Material of cutting blades | Cr 12 Mov, quenching 58-62℃ |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| 18 | Switch | CHNT |
| 19 | Frequency changer | Touch-win |
