| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-LG-5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 30set/Year |
| Name: | Ceiling Keel Forming Machine | Tile Type:: | Steel |
|---|---|---|---|
| Type: | Automatic | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 20 Month | Certification: | CE BV STV ISO |
| Thickness: | 0.3-0.7mm | The Shaft: | 75mm Solid |
| Control System: | PLC(imported Brand) | Motor Brand: | China Famous Brand |

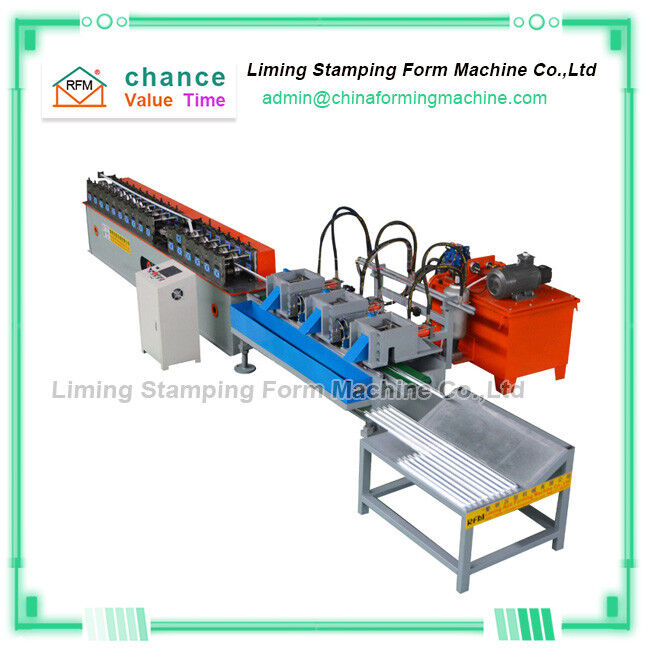

Used In Interior Decoration Fully Automatic T Bar Ceiling Keel Forming Machine
T bar ceiling keel forming machine is used to make ceiling T-bar.The T-bar is a technical profile for supporting suspended ceiling panels (cell grid suspended ceiling).This highly technical system consists of two different profiles which called Main Tee and Cross Tee.A galvanized sheet metal base gives structure and strength to the profile, but all that can be seen once the ceiling is assembled is a pre-painted sheet metal profile. Special machining and hooks or connectors are to be found on the profile body and the ends, which allow the profiles to be fastened to the ceiling and to each other.These materials are widely used in the buildings now,such as office building and schools, etc.
Why T bar ceiling keel forming machine so widely use?
Now metal ceiling making are widly use.
Advantage is fireproof,can be spray with variety of color and various of specs for customer to choose, it's easy to assemble and disassmbly.So it is widely use in office, shopping malls, hotal lobby,train station, airport, etc. So Ceiling T bar are demanding grow repidly.
Used In Interior Decoration Fully Automatic T Bar Ceiling Keel Forming Machine technical parameters
| No. | Item | |
| 1. | Processing Material | GI,PPGI |
| 2. | Processing Thickness(mm) | 0.2--0.35 |
| 3. | Material of Rollers | Cr12 steel,with hard treatment 58--62 |
| 4. | Diameter of Shaft | Φ50mm |
| 5. | Production Speed | 20--25m/min |
| 6. | Roller Driven | Gear Transmission |
| 7. | Cutting Model | Hydraulic Profile Cutting |
| 8. | Length Measurement | Encoder |
| 9. | Control Style | PLC |
| 10. | Operation Model | Button + Touch Screen |
| 11. | Total Power | 4+3kw |
| 12. | Voltage | 380V 50HZ or at buyer's request |
| 13. | Number of roller stations | 16 |
