| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-LG-6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 60set/Year |
| Name: | U Channel Roll Forming Machine | Tile Type:: | Steel |
|---|---|---|---|
| Type: | Automatic | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 20 Month | Certification: | CE BV SGS |
| Thickness: | 0.3-0.7mm | The Shaft: | 40mm Solid |
| Control System: | PLC(imported Brand) | PLC: | Mitsubishi/delixi/siemens |

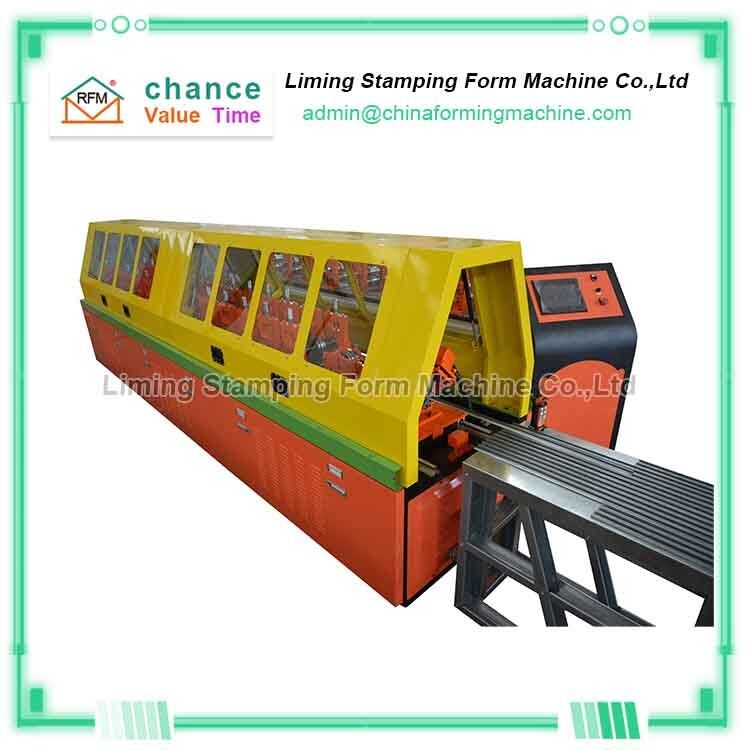

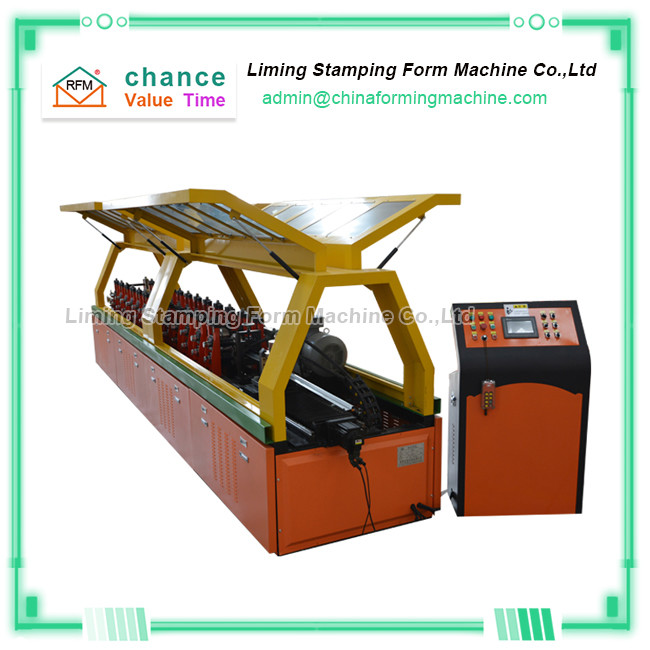

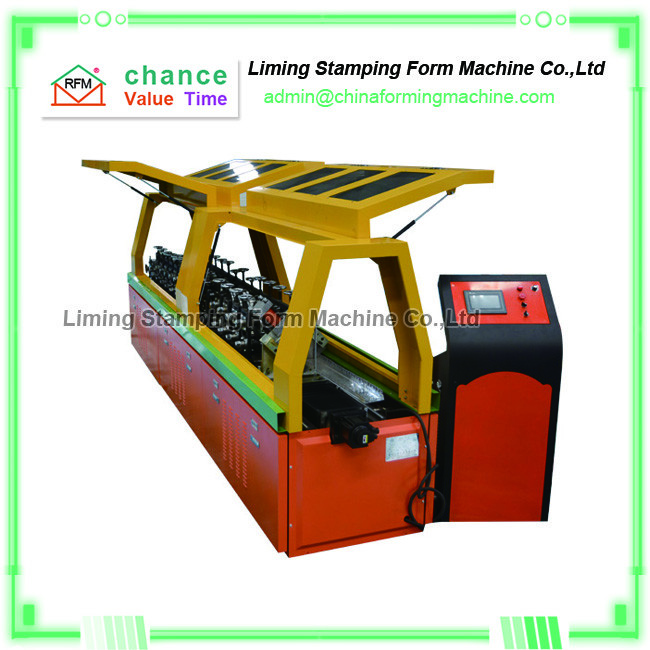

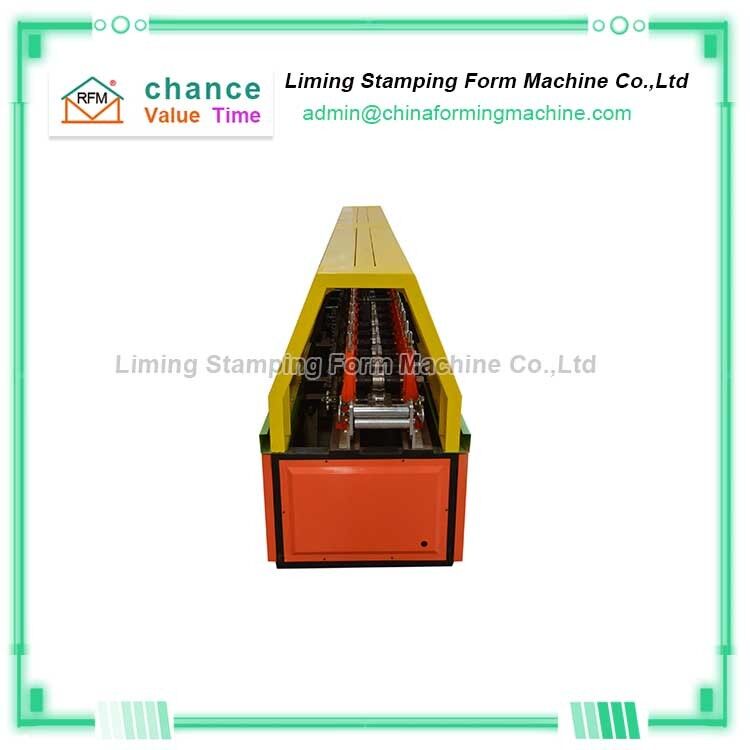

High Quality Galvanized Steel Sheet U Channel Roll Forming Machine
U roll forming machine has been designed for the automatic manufacturing of metal c stud or u track continuously for light gauge or lightweight steel building systems.
Metal c stud and u tracks are great inventions in steel building projects, and that makes drywall stud and track roll forming machine, or even all the lightweight or U Channel Roll Forming Machine highly popular in the international. There are many international leading manufacturers of roll forming machines ( like HOWICK, FRAMECAD,SCOTTSDALE and DALLAN etc) whose primary products are U Channel Roll Forming Machine.
U Channel Roll Forming Machine Specification:
1) Can produce Metal Stud. drywall track, rail, light keel, Ceiling Tray
2) High speed work, perfect finish
3) European quality, work smoothly.
Here are some samples for your reference:
Main parameter of U Channel Roll Forming Machine :
| Material hardness | 550mpa-350mpa |
| Loading capacity | 1.5T |
| Uncoiling width | 300mm |
| Inner diameter | 450-550mm |
| Processing material | GI |
| Material thickness | 0.4-0.8mm |
| Frame thickness | 25mm |
| Drive mode | gear |
| Forming speed | 35m/min |
| Formed width | Negotiatemm |
| Material of shafts | 45#steel with tempering of keel roll forming machine |
| Diameter of shafts | φ40mm |
| NO. of rollers | 10 rollers |
