| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | BV、ISO |
| Model Number: | LM-LG-7 |
| Minimum Order Quantity: | 1 |
| Price: | USD22000-USD24000 |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Name: | V-Shaped Corner Forming Machine | Tile Type:: | PPGI GI |
|---|---|---|---|
| Power: | 5.5KW | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Cutting Type: | Hydraulic Cutting | Certification: | CE BV SGS |
| Production Capacity: | 50m/min | The Shaft: | 70mm Solid |
| Control System: | PLC(imported Brand) | Warranty: | 12month |

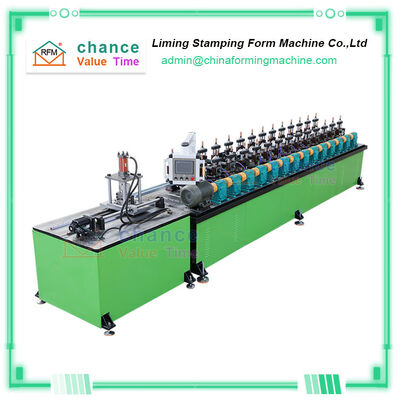

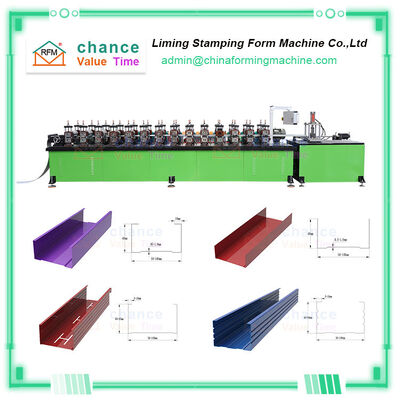

The Production Speed Of Hydraulic Cutting V-Angle Forming Machine In Building Materials Market Is 50m / Min
Steel angle, widly known as angle iron or wall angle , it is a long strip of steel that is perpendicular to each other on both sides.

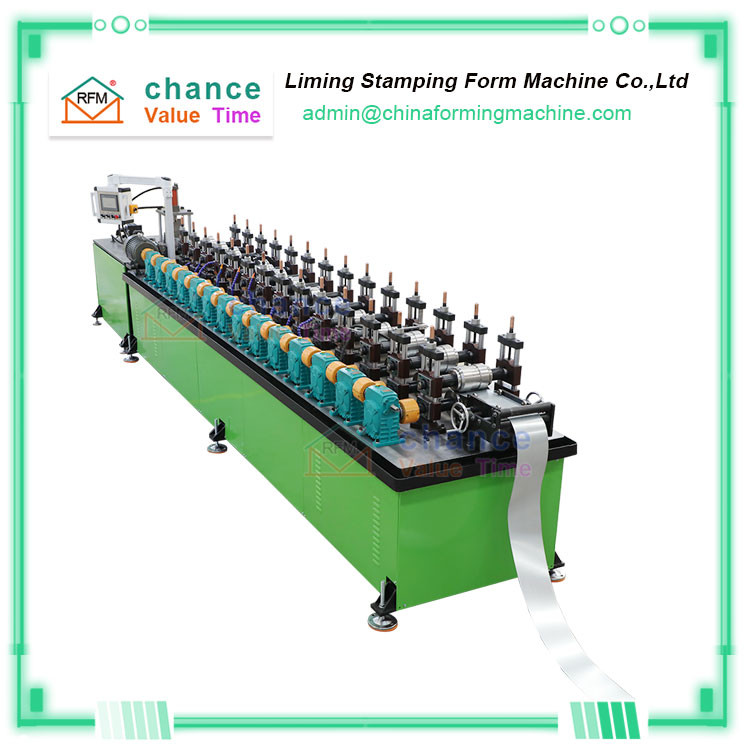

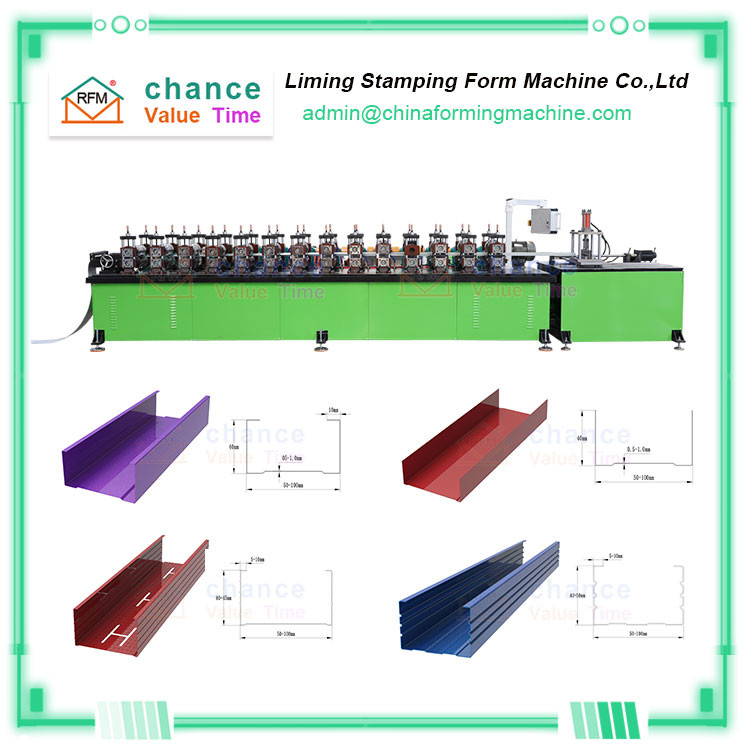

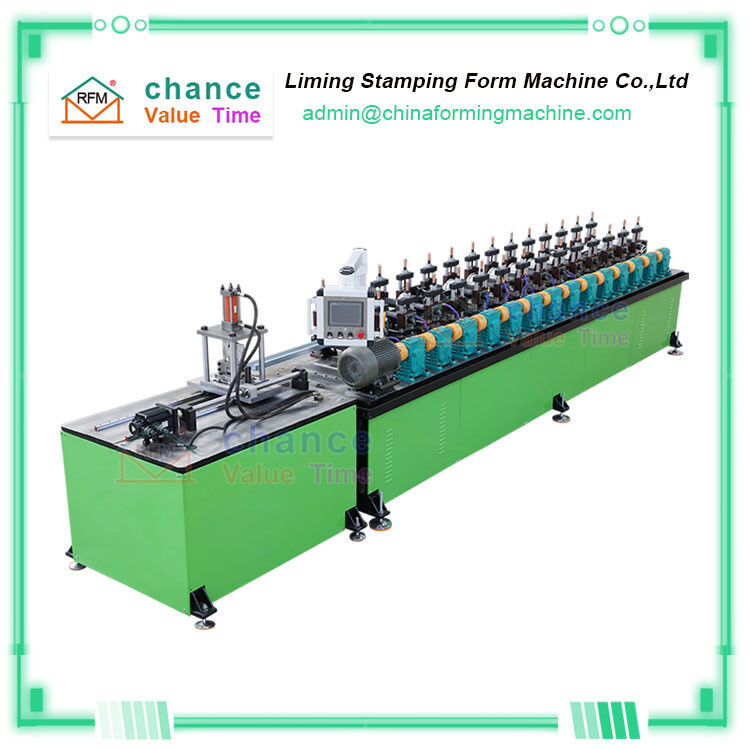

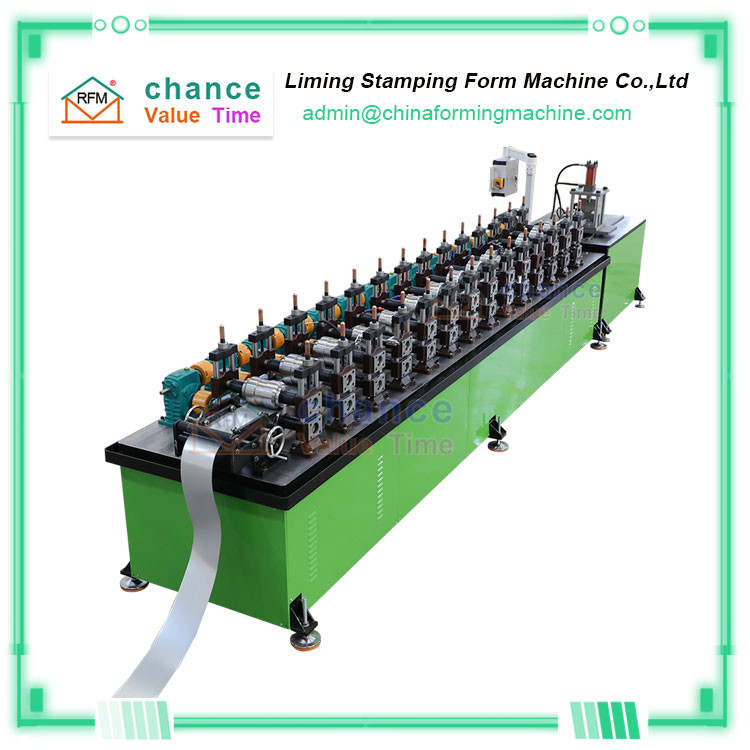

Angle Stud Cold Forming Machine/ V-Shaped Corner Forming Machine
Why choose us V-Shaped Corner Forming Machine?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
Main parameter of The Production Speed Of Hydraulic Cutting V-Angle Forming Machine In Building Materials Market Is 50m / Min
| No. | Hydraulic V-Shaped Corner Forming Machine For Building Materials Market | |
| 1 | Length of the main part | 3000*800*1400mm |
| 2 | Weight of main part | About 3 t |
| 3 | Voltage | 380V/50HZ3Phase (as customer’s request) |
| 4 | Roller fixer | Guide column |
| 5 | Frame |
Middle plate welded Memorial arch frame type |
| 6 | Frame thickness | 25mm |
| 7 | Drive mode | Gear or chain |
| 8 | Material of rollers | 45# steel with tempering |
| 9 | Material of shafts | 45# steel with tempering |
| 10 | Diameter of shafts | φ40mm |
| 11 | Number of rollers | 10 rollers |
| 14 | Main power |
3kw (Cycloidal planetary gear speed reducer)
|
