| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | BV、ISO |
| Model Number: | LM-LG-9 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Name: | Omega Roll Forming Machine | Tile Type:: | Colored Glaze |
|---|---|---|---|
| Voltage:: | 380V 50Hz 3phases | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Video Outgoing-inspection:: | Provided | Certification: | CE/ISO9001 |
| Production Capacity: | 15-25m/min | Of Machine: | Bird's NesColort Paint Orange |
| Lanugage System: | As Required | Core Components: | PLC, Motor, Pump |

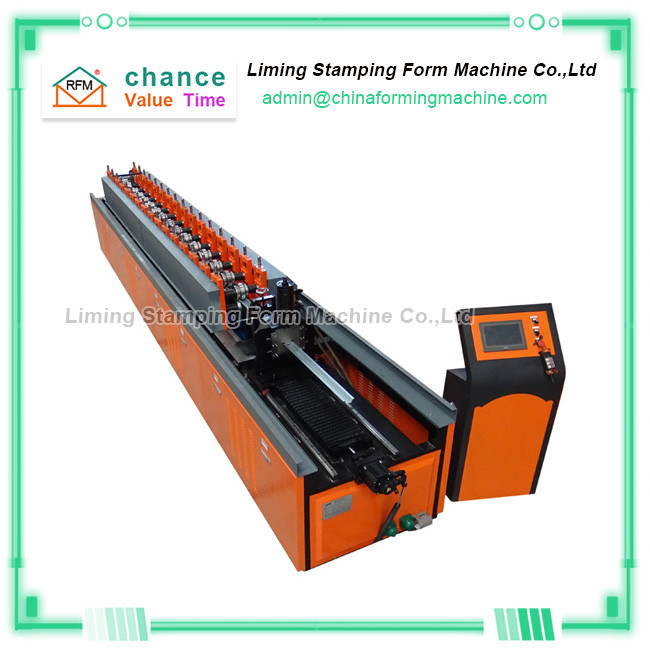

Gypsum Board Ceiling Servo High Speed Cutting Omega Roll Forming Machine
Omega Roll Forming Machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.
Material for this Omega Roll Forming Machine is galvanized steel plate, snowflake plate and cold steel plate, we can according to customer design, manufacture different specifications of cold-formed.
Main parameters of Omega roll forming machine
| No. | Type | Specification | |
|
1 |
Raw Material |
Type | Colored steel plate, galvanized board |
| Feeding width | According to requirement | ||
| Thickness | 0.4-0.6mm | ||
|
2 |
Main body |
Roller station | 12 steps (According to the profile) |
| Diameter of shaft | 50mm | ||
| Shaft material | 45# Steel | ||
| Roller material | 45# Steel | ||
| Frame | square pipe | ||
| Frame thickenss | 14 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 15-20 m/min | ||
| Size (L*W*H) | About 5600*950*1510mm | ||
| Weight | About 2.5 Tons | ||
| Cutting type | Hydraulic tracking cutting | ||
| Material of blade | Cr12 | ||
| 3 | Power | Motor power | 5.5 kw |
| Hydraulic power | 4 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Gear | ||
