| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity:: | 8m/min | Material Of Blade:: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| After-sales Service Provided:: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support | Warranty: | 2 Years |
| Certification: | CE、BV、ISO | Power:: | 15kw |
| Dimension(L*W*H):: | 6800(L)*1200(W)*1500mm(H) | Weight:: | 10T |
| Use:: | Pv Mounting | ||
| Highlight: | 8m/min Solar PV Bracket Roll Forming Machine,Windproof Solar PV Bracket Roll Forming Machine |
||

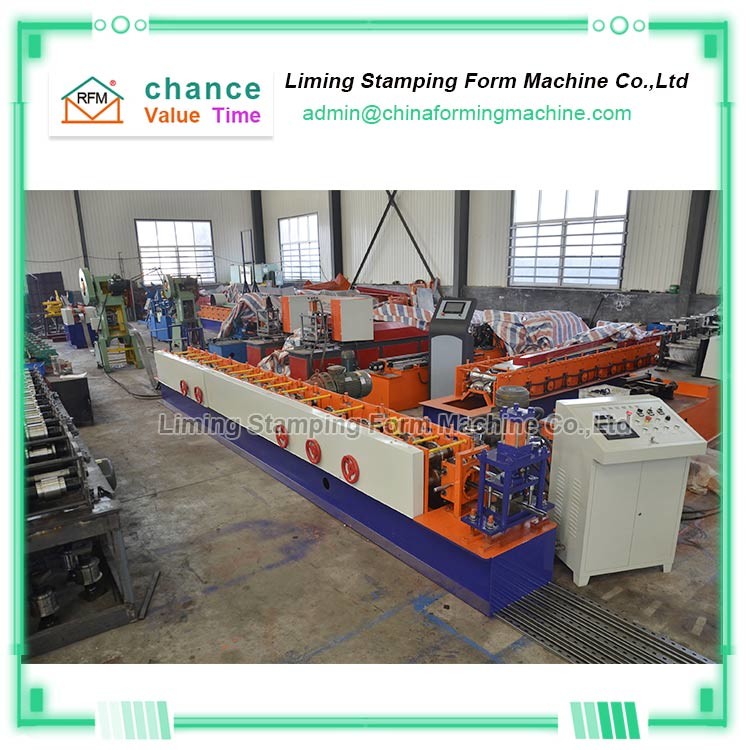

Windproof And Shockproof Solar PV Bracket Roll Forming Machine
"Windproof and shockproof solar PV Bracket Roll Forming Machine" can produce bracket profiles of various cross-sectional specifications and models by switching, and can quickly and easily change the plate shape. One person can operate the entire production line.
"Windproof and shockproof solar PV Bracket Roll Forming Machine" PLC centrally controls the uncoiling, leveling and feeding of the entire production line, fixed-length punching, roll forming, subsequent cutting and unloading. Multiple sets of part data tasks can be set at one time, automatic production and remote control.
"Windproof and shockproof solar PV Bracket Roll Forming Machine" is manufactured by German COPRA software; finite element process analysis and inspection have been carried out.
The"Windproof and shockproof solar PV Bracket Roll Forming Machine" increases the speed of the production line and reduces the forming resistance. Thereby ensuring the accuracy and stability of the equipment.
Technical parameters of Windproof And Shockproof Solar PV Bracket Roll Forming Machine
| 1. Profile | .Thickness:2.0mm |
| 2. Process flow | Decoiling---feeding---leveling---punching---forming---cutting---production |
| 3. Manual decoiler | 1).Material coil inner diameter: 450mm-550mm |
| 2).Max coil width: 600mm | |
| 3).Carrying capacity: 1500kg | |
| 4. Punching machine | 60t Automatic punch holes(with one set of mold) |
| 5. Forming system | 1).Number of forming steps:2 steps feeding rollers,4 steps leveling rollers, 12steps forming rollers, |
| 1).Shaft material:45# steel | |
| Roller material:45# steel | |
| Outer diameter:80mm | |
| 2).Transport: by chain Chain:1 inch | |
| 3).Forming speed:5-10m/min | |
| 4).Motor:11 kw | |
| 5).Voltage:380v,50Hz,3 phase | |
| 6)Size of the machine line :9.5*1.5*1.2m | |
| 7)Weight :6tons | |
| 6.Cutting system | 1).Material: blade and mold material: Cr12 steel with quenched treated 60-62℃ |
| 2).Cutting system:advanced hydraulic drive, automatic cutting after forming, | |
| no distorting or wasting, high level safety factor. | |
| 7.Control system | 1). Screen: Delta screen from Taiwan |
| 2). PLC: Delta DVP14ES from Taiwan | |
| 3). Coder: ENC-1-1-1T-24 from South Korea | |
| 8. Hydraulic | 1). Advanced hydraulic system from Taiwan |
| 2). Power:5.5kw | |
| 9. Spare Parts | 1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs |
| 2).Rubber mat 1 pcs; | |
| 3).Bolt spanner 1 pcs |
