| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity:: | 8m/min | Material Of Blade:: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| Color:: | Client's Request | Warranty: | 2 Years |
| Certification: | CE、BV、ISO | Power:: | 15kw |
| Dimension(L*W*H):: | 6500*1300*1100 | Material Of Rollers:: | 45#steel Forge |
| Use:: | Pv Mounting | ||
| Highlight: | SS Solar PV Bracket Roll Forming Machine,15kw PV Mounting Roll Former,15kw Solar PV Bracket Roll Forming Machine |
||

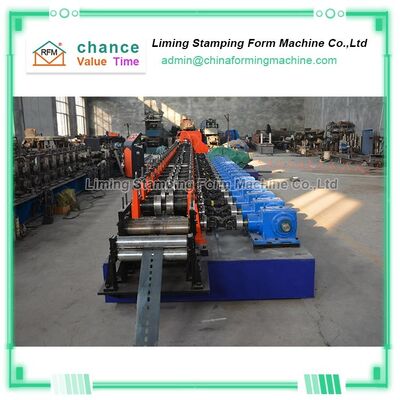

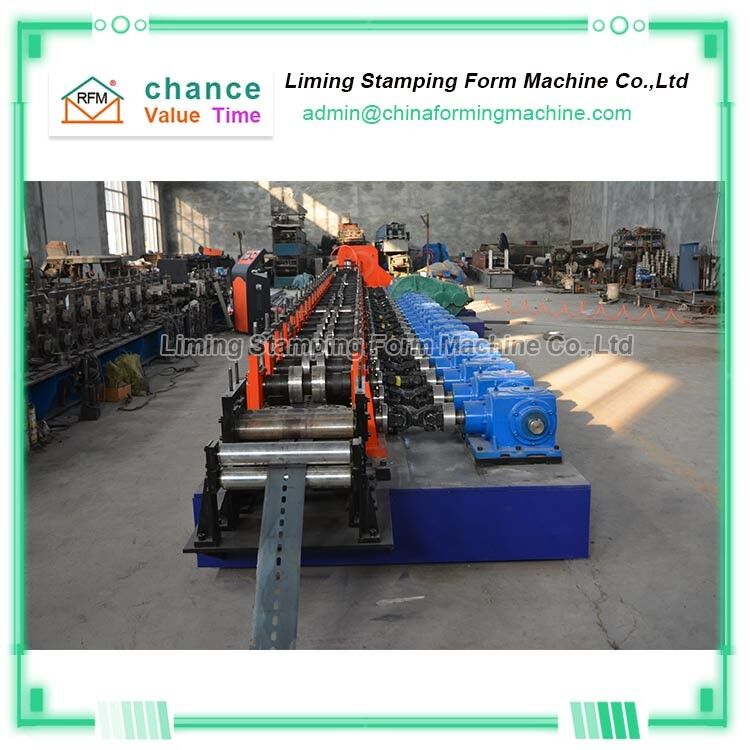

Stainless Steel Solar PV Bracket Roll Forming Machine
"Stainless steel solar PV Bracket Roll Forming Machine" " is composed of decoiler, straightening machine, servo feeder, punching machine, conveying rail, forming host and support frame.
"Stainless steel solar PV Bracket Roll Forming Machine" " can produce various cross-sections and different specifications of stent profiles by switching.
The finished product of "Stainless steel solar PV Bracket Roll Forming Machine" " has good flatness.
"Stainless steel solar PV Bracket Roll Forming Machine" " has a high degree of automation, high speed, production line speed: 10 meters per minute.
The finished product produced by the "Stainless steel solar PV Bracket Roll Forming Machine" " is a special bracket used to place, install and fix solar panels in a solar photovoltaic power generation system.
The finished products produced by the "Stainless steel solar PV Bracket Roll Forming Machine" " are usually made of aluminum alloy, carbon steel and stainless steel.
Technical parameters of Stainless Steel Solar PV Bracket Roll Forming Machine
| tem | Parameters | |
| According to your requirements | ||
| Model | Type | PPGI, GI, CR , Steel Coil |
| Thickness(mm) | 1.0-3.0 mm | |
| Yield strength(Mpa) | 345 | |
| Forming speed(m/min) | 0-15 | |
| Punching Device | 1 Unit | |
| Roller Stations | About 17 stations; According to the final design | |
| Roller material | GCR15 steel, coated with chrome | |
| Roller driven type | Chain transmission | |
| Control System | PLC (Panasonic) as list in the note | |
| Operation type | Touch screen + button | |
| Hydraulic system pressure( MPa ) | 25 | |
| Hydraulic motor power ( KW ) | 5.5 | |
| Main motor power(KW) | 11x2 | |
| Shaft Material and DIA | 80 mm, material is 45 # forge steel | |
| Cutting Way | Tracking hydraulic mould cutting | |
| Electric Source | 380V, 50HZ,3 phase; According to customer’s require | |
| Way Of Drive | Chain transmission | |
| Dimension(L*W*H) | Forming Section about 9m*0.8m*1.2m | |
