| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity:: | 8m/min | Material Of Blade:: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| Cutting Blade Material:: | Cr 12 High Grade Steel | Warranty: | 2 Years |
| Certification: | CE、BV、ISO | Thickness:: | 1.5-3mm |
| Dimension(L*W*H):: | 6500*1300*1100 | Material Of Rollers:: | 45#steel Forge |
| Use:: | Pv Panel Mounting Rail Bracket | ||
| Highlight: | LIMING Solar PV Bracket Roll Forming Machine,3mm Solar PV Bracket Roll Forming Machine,3mm Solar panel bracket roll forming machine |
||

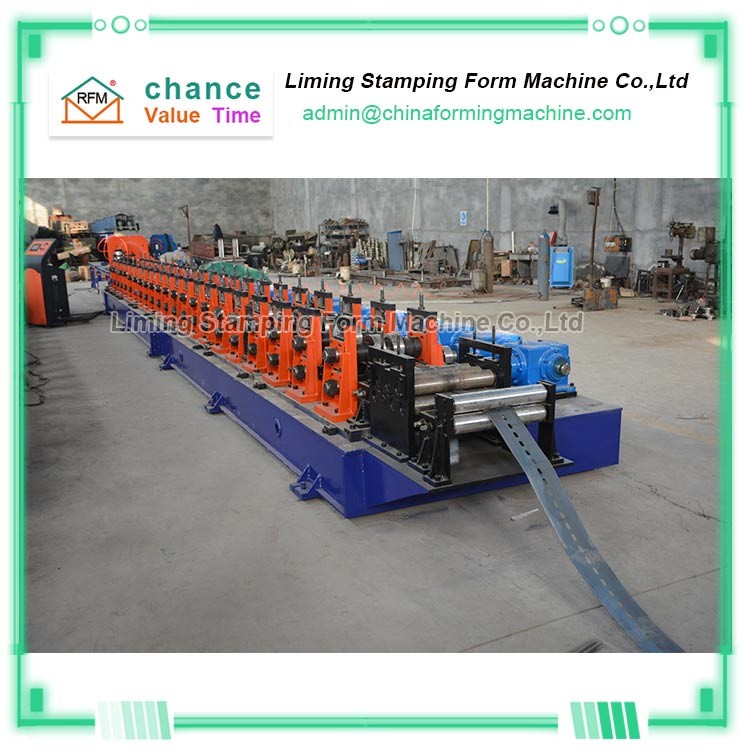

Energy Saving Solar PV Bracket Roll Forming Machine
"Energy saving solar PV Bracket Roll Forming Machine" is a special bracket specially used to place, install and fix solar panels in the production of solar photovoltaic power generation systems.
"Energy saving solar PV Bracket Roll Forming Machine" is mainly composed of a passive internal support unwinding frame, a feeding guide mechanism, a pressure roller mechanism, a paper leveling mechanism, a pressure roller, a punching mechanism, and a forming machine. Main engine, hydraulic station system, PLC computer control system, finished product support frame and other parts
The entire production line of the "Energy saving solar PV Bracket Roll Forming Machine" integrates multiple technologies such as leveling, feeding/punching, forming and cutting.
The "Energy saving solar PV Bracket Roll Forming Machine" is controlled by PLC, and multiple safety protection measures are set up during the normal production process.
Technical parameters of Energy Saving Solar PV Bracket Roll Forming Machine
| No | Part | Model and specific | Quantity | Remarks |
| 1 | Uncoiler | 5T Automatic | 1 set | 5.5KW+3KW |
| 2 | Servo feeder & Straightener | With individual control system | 1 set | 5.5KW |
| 3 | Press machine | 80T | 1 set | LIMING |
| 4 | Punching mould | SKD11 | According to hole layout | |
| 5 | Roll forming machine | Single station. By gearbox | 1 set | 22KW |
| 6 | Hydraulic cutter | 1 set | 5.5KW | |
| 7 | Conveyor | Length: 3m | 3 sets | |
| 8 | Controller | Whole machine PLC | ||
| 9 | Spare part |
