| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity:: | 8-12m/min | Voltage:: | 380V 50Hz 3phases |
|---|---|---|---|
| Cutting Blade Material:: | Cr 12 High Grade Steel | Warranty: | 2 Years |
| Certification: | CE、BV、ISO | Thickness:: | 1.5-3mm |
| Weight:: | 5 Tons | Material Of Rollers:: | 45#steel Forge |
| Use:: | Pv Panel Mounting Rail Bracket | ||
| Highlight: | 5 Tons Solar PV Bracket Roll Forming Machine,12m/min Solar Panel Stand making machine,12m/Min Solar PV Bracket Roll Forming Machine |
||

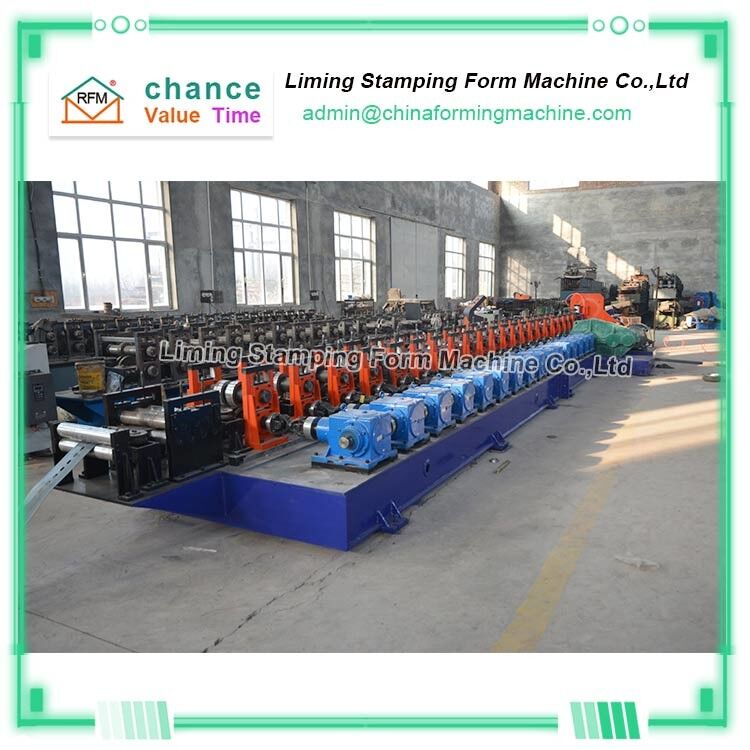

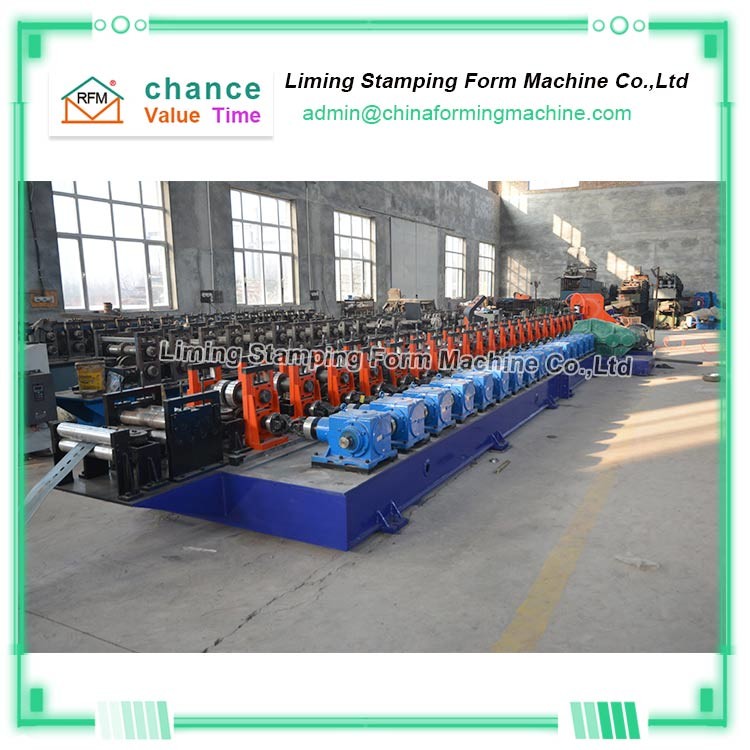

Environment-Friendly Solar PV Bracket Roll Forming Machine
"Environment-friendly solar PV Bracket Roll Forming Machine" has the following advantages:
1. "Environment-friendly solar PV Bracket Roll Forming Machine" is controlled by PLC, and multiple safety protection measures are set up during the normal production process.
2."Environment-friendly solar PV Bracket Roll Forming Machine" bed is welded steel plate. And tempered to eliminate internal stress and avoid body deformation.
3. The frame of the "Environment-friendly solar PV Bracket Roll Forming Machine" is a cast iron structure and has been tempered. High strength and long service life.
4."Environment-friendly solar PV Bracket Roll Forming Machine" roller material is 40Cr, and the hardness after quenching and tempering is HB280.
5."Environment-friendly solar PV Bracket Roll Forming Machine" molding die material is GCr15, quenched, hardness is HRC56-62℃.
6. The transmission structure of the "Environment-friendly solar PV Bracket Roll Forming Machine" is gear box transmission. Each forming frame has a gear box, which can ensure the equipment has high strength, long service life and long-term use.
Technical parameters of Environment-Friendly Solar PV Bracket Roll Forming Machine
| Material specification | Galvanized and pre-painted galvanized steel. |
| Thickness | 0.8 mm to 1.5mm. |
| Main motor power | 5.5 kw. |
| Hydraulic station power | 3 kw. |
| Feeding width | 124mm. |
| Cover width | 60mm. |
| Yield stress | 235Mpa(33KSI) ~ 345Mpa (50KSI). |
| Roll forming Speed | 12 m/minute. |
| Cutting Tolerance | ±2mm |
| Manual Uncoiler | Max. Capacity: 5000kgs. |
| Voltage | As per customer’s request. |
| Numbers of stands | 11 stands/stations/pairs. |
| Roller material | 5# steel polished and coated with chrome HRC55-60° |
| Shaft diameter | 70mm |
| Shaft diameter | high grade No.45 steel after treatment |
| Type of cutting | Roll-formed and length-set profile cutting. |
