| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | BV、ISO |
| Model Number: | LM-LG-13 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Name: | C Stud Partition Wall Steel Keel Forming Machine | Condition: | New |
|---|---|---|---|
| Type: | Roll Forming Machine | Main Motor Power: | 3.5KW |
| Tile Type: | Steel | Roller Material: | 45# |
| Electric Control System: | PLC | Applicable Industries: | Decoration Ceiling |
| Warranty Of Core Components: | 18 Month | Control System: | PLC(Touch Screen) |

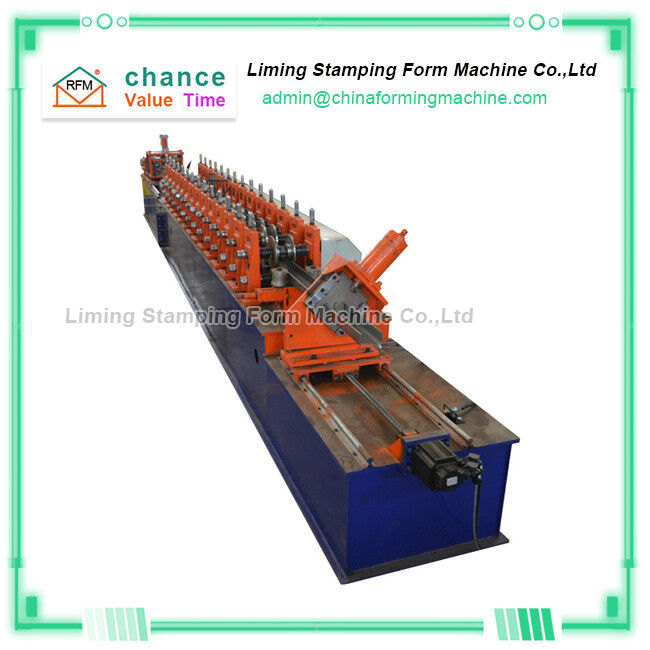

Adjustment Multiple Models C Stud Partition Wall Steel Keel Forming Machine

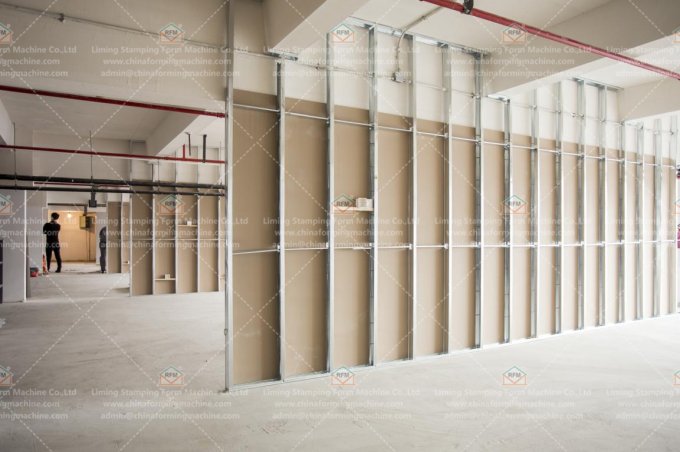

In the decoration of architectural office, the final space division needs to be adjusted frequently, and the space division needs to be met by the partition wall. Multiple Models C Stud Partition Wall Steel Keel Forming Machine can meet the needs of multiple models of products and is also applicable In a variety of scenarios, you do not need to purchase multiple C Stud Partition Wall Steel Keel Forming Machine, you can produce multiple models of products, you can sell the profile, the project is applicable, or you can use it yourself.

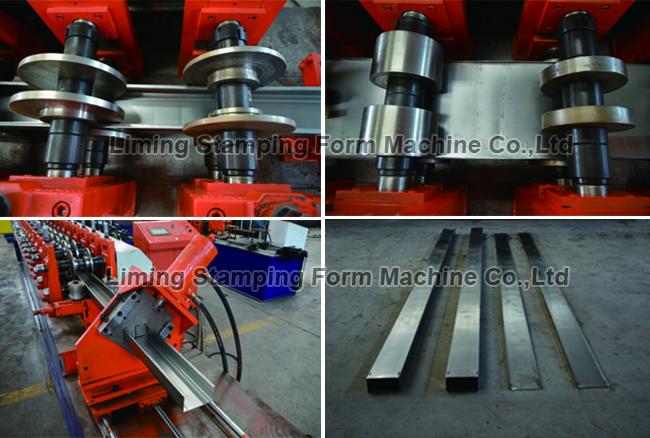

We can provide C Stud Partition Wall Steel Keel Forming Machine for producing smooth and accuracy stud and track for wall partition and ceiling decoration, satisfy customer’s requirement of needing accuracy size of stud and track for easy installation, avoid the problem of install again because of wrong size.
Main Parameters Of C Stud Partition Wall Steel Keel Forming Machine:
| 1 | Width of feeding material | 120/150/300mm coil sheet or customized |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 15-30 m/min |
| 6 | Rollers' material | 45# steel with 0.05 mm chrome |
| 7 | Shaft material | 45# steel with 0.05 mm chrome |
| 8 | Weight | 4.5 tons |
| 9 | length | 5.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 3-5 tons |
| 13 | Motor | 3.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter |
