| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Type: | Roll Forming Machine | Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Condition:: | New | Application:: | Construction |
| Warranty: | 12month | Applicable Industries: | Decoration Ceiling |
| Control System: | PLC Control System | Video Outgoing-inspection:: | Provided |
| Highlight: | Shelf Rack Roll Forming Machine,Warehouse Rack Roll Forming Machine,PLC shelf roll forming machine |
||

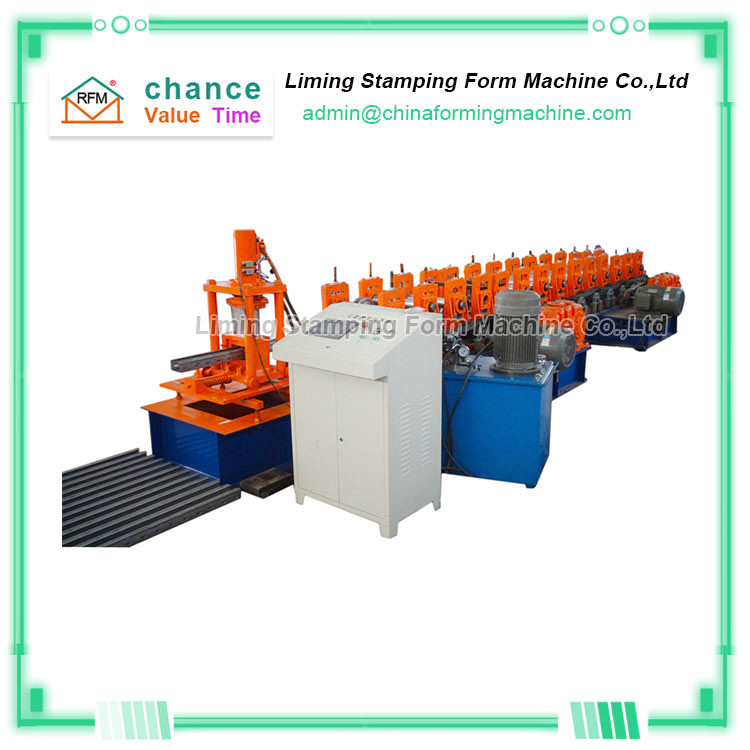

Warehouse Shelf Upright Rack Roll Forming Machine
"warehouse shelf upright rack roll forming machine" products include: rack columns, rack beams, rack columns, rack laminates and other products.
"warehouse shelf upright rack roll forming machine" adopts PLC control, high degree of automation and convenient operation.
"warehouse shelf upright rack roll forming machine" is used to produce various storage, logistics, large supermarkets and convenience supermarket shelves.
"warehouse shelf upright rack roll forming machine" profile is integrated with good straightness. Online drilling, good hole position accuracy, convenient and quick installation.
Production process of "warehouse shelf upright rack roll forming machine"
Automatic uncoiling, leveling, servo feeding, punching, cold bending forming-cut into fixed length forming
The frame of the "warehouse shelf upright rack roll forming machine" is a cast iron structure and has been tempered. High strength and long service life.
Main Parameters Of Warehouse Shelf Upright Rack Roll Forming Machine
| 1) Number of rolling stations: 16 rolling stations |
| 2) Shaft diameter: 70mm |
| 3) Shaft material: 45# steel after quenching. |
| 4) Roller material: 45# steel after quenching. |
| 5) Transmission method: by China |
| 6) Chain width: 1.5mm |
| 7) Machine working speed: 0-5m/min |
| 8) Working speed: 0-5m/min |
| 9) Motor Brand: Chinese famous brand MengNiu |
| 10) Voltage: 380v, 50Hz, 3 phases |
| 11) Machine size: :9.5*1.5*1.2m |
| 12) Machine frame: Middle plate |
| 13) Machine frame thickness: 20mm |
