| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Power:: | 45kw | Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H):: | 35*3*5m | Production Capacity:: | 8-15m/min |
| Warranty: | 12month | Place Of Origin:: | China |
| Voltage:: | 380v | Weight:: | 25t |
| Highlight: | Rack Roll Forming Machine For Hotels,25t Rack Roll Forming Machine,25t automatic roll forming machine |
||

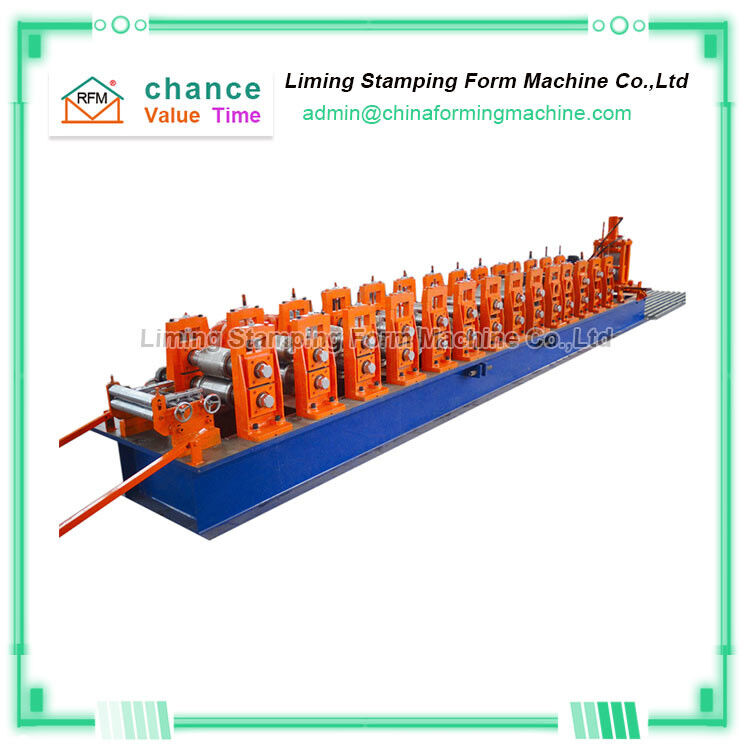

Automatic Rack Upright Roll Forming Machine
Advantages of "Automatic Rack Upright Roll Forming Machine":
1. "Automatic Rack Upright Roll Forming Machine" is a kind of customized equipment: customers can customize according to their own production requirements, product requirements, factory requirements, etc. Our company relies on its own strong technical team to meet the different requirements of customers.
2. Automation of "Automatic Rack Upright Roll Forming Machine": adopting domestic advanced technology and integrating many production processes, one person can complete the operation, thus saving labor and production costs.
3. The production efficiency of the "Automatic Rack Upright Roll Forming Machine": highly automated and intelligent, which can save production cycles and improve production efficiency.
4. "Automatic Rack Upright Roll Forming Machine" safety measures: PLC controller is used, and a variety of safety protection measures are built-in to avoid accidental injuries.
5. "Automatic Rack Upright Roll Forming Machine" is very durable: "Automatic Rack Upright Roll Forming Machine" mostly adopts international famous brands such as Mitsubishi, Schneider, Omron, etc., in order to reduce failure rate and save production time and cost. , Improve production efficiency and reduce maintenance costs.
Main Parameters Of Automatic Rack Upright Roll Forming Machine
| No. | Item. | Parameters. |
| 1 | manual decoiler | 1.max coil width:550mm |
| 2.carrying capacity:5T | ||
| 2 | main roll forming machine | 1.number of forming steps:12 steps with 2 leveling shafts |
| 2.shaft diameter:80mm | ||
| 3.transmission style:1.5inch chain | ||
| 4.main motor:11kw,5-8m/min | ||
| 3 | cutting equipment | 1.cutting mode:hydraulic pillar cutting |
| 2.cutting length tolerance:1mm | ||
| 4 | PLC control box | operate manual:5.7inch touch screen |
| 5 | hudraulic pump | pump power:4kw |
| 6 | out put table | 1.height:adjustable |
| 2.rollers:3 running rollers | ||
| 7 | suitable material | galvanized steel |
| 8 | thickness | 1-3mm |
| 9 | feeding width | based on customer's request |
| 10 | voltage | 380v50hz3h |
