| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Power:: | 45kw | Key Selling Points:: | Easy To Operate |
| Dimension(L*W*H):: | 35*3*5m | Production Capacity:: | 8-15m/min |
| Warranty: | 24month | Features:: | Full Automatic |
| Voltage:: | 380v | Weight:: | 25t |
| Highlight: | 2.3mm Racking Roll Forming Machine,Garment Shops Racking Roll Forming Machine,storage Racking Roll Forming Machine |
||

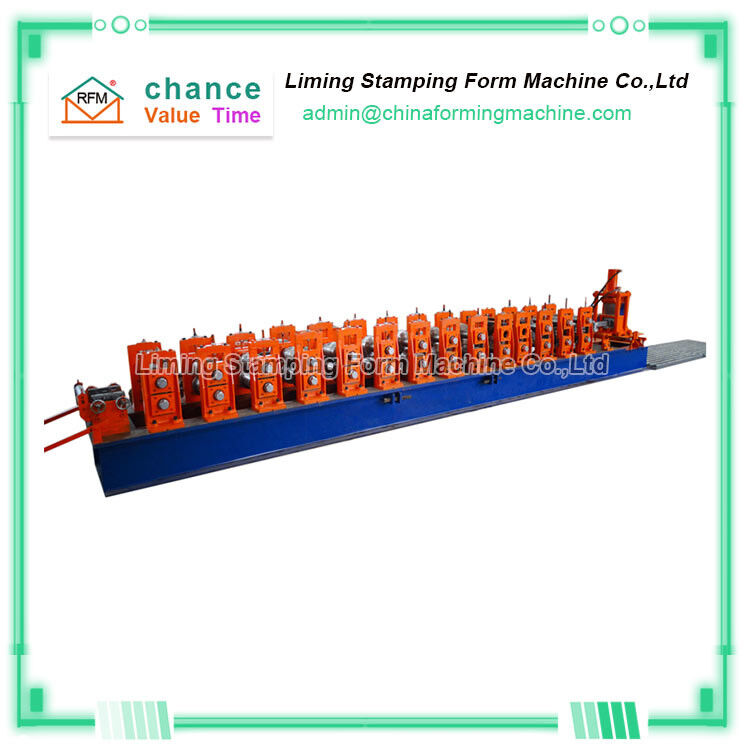

1.8 - 2.3mm Storage Upright Rack Roll Forming Machine
Performance characteristics of "1.8 - 2.3mm Storage Upright Rack Roll Forming Machine "
"1.8 - 2.3mm Storage Upright Rack Roll Forming Machine " has the characteristics of reasonable design structure, compact shape, high precision, high efficiency, flexible and convenient adjustment.
The function of "1.8 - 2.3mm Storage Upright Rack Roll Forming Machine ": automatic detection of steel coil parameters, one-key winding, one-key reclaiming, automatic centering adjustment.
"1.8 - 2.3mm Storage Upright Rack Roll Forming Machine " double palletizer automatic switching, automatic detection and punching, accurate calculation, safe and reliable.
The manufacturing process of "1.8 - 2.3mm Storage Upright Rack Roll Forming Machine " is produced in strict accordance with the mechanical standards and specifications, and the manufacturing of each component is tracked and controlled.
The electrical components of the "1.8 - 2.3mm Storage Upright Rack Roll Forming Machine " are imported high-end brands, and the mechanical components are well-known domestic and foreign brands.
Main Parameters Of 1.8 - 2.3mm Storage Upright Rack Roll Forming Machine
| Decoiler: | Electric feeding, hydraulic tightening |
| Loading weight: | 5T |
| Coil ID: | φ508mm/φ610mm |
| Coil expansion range: | φ450-φ530mm/φ630mm |
| Motor power: | 5.5kw |
| Hydraulic system power: | 3kw Shaft diameter: φ190mm Tighten cylinder diameter: φ200mm |
| Hydraulic system oil pump: | vane pump Hydraulic system solenoid valve brand: Beijing huade |
