| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack10 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Type: | Punching Machine | Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Power:: | 45kw | Tile Type:: | Construction |
| Dimension(L*W*H):: | 35*3*5m | Production Capacity:: | 0-5m/min |
| Warranty: | 24month | Gear Oil:: | 18 # Hyperbolic Gear Oil |
| Voltage:: | 380V 50HZ 3Phase | Thickness:: | 0.3-0.8mm |
| Highlight: | Steel Coil Roll Forming Machine,45kw Shelf Roll Forming Machine,45kw Coil Roll Forming Machine |
||

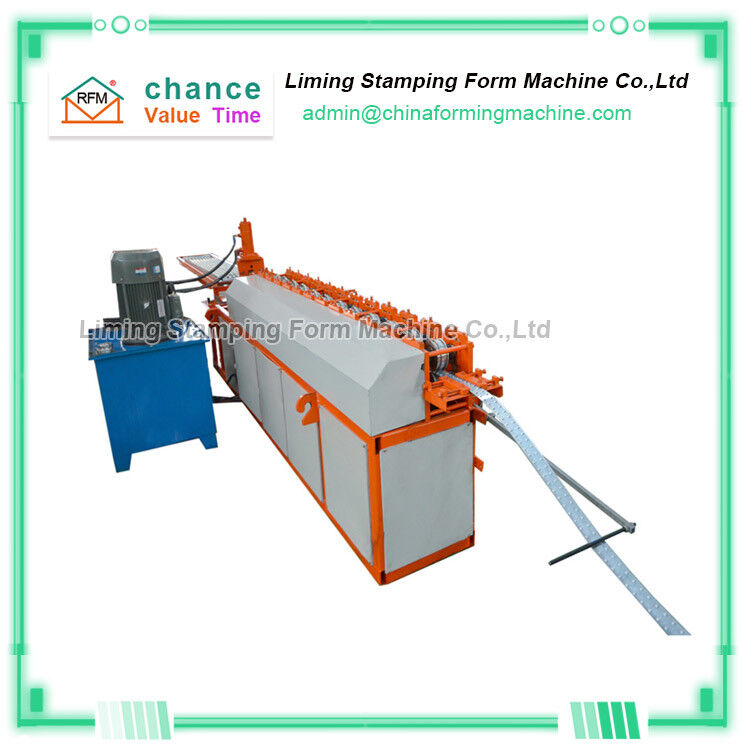

Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm
"Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm" working speed is about 15m/min
The main features of "Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm" :
1. The finished product of the "Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm" is smooth and beautiful, and the accuracy error is within 1mm.
2. "Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm" The bottom frame adopts 82mm solid shaft and H-shaped steel as the bottom frame, which can withstand production for a long time without deformation, thus ensuring long-term use of machine production
3. The rollers of the "Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm" are processed by CNC machine tools to ensure the accuracy of the rollers, thereby ensuring the accuracy of the finished product.
4."Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm" adopts Mitsubishi or Siemens operating system, stable performance, simple operation, one-time input length and quantity, rack machine automatic production, cutting length tolerance within ±2mm
5. "Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm" cutting method: hydraulic automatic die-cutting, to ensure that there is no waste in the production machine and reduce the cost of raw materials.
Main Parameters Of Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm
| No. | Item Name | Specification |
| 1 | Width of feeding material | <1000mm coil sheet |
| 2 | Thickness of feeding material | <3.0mm coil sheet |
| 3 | Roller station | 22 stations |
| 4 | Shaft Diameter | 75-95 mm |
| 5 | Productivity | 20-25 m/min |
| 6 | Rollers' material | Bearing steel |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 6-8 ton |
| 9 | length | 12.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 8 Tons |
| 13 | Motor | 3kw-15kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6 inch-2 inch |
| 16 | Cutting system | Hydraulic cutter |
