| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-LG-20 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Name: | CU Ceiling Keel Roll Forming Machine | Material: | Steel |
|---|---|---|---|
| Roller Material: | 45#steel | Feeding Thickness: | 0.3mm-1.2mm |
| Production Speed: | 15-25m/min | Weight: | 3-3.5T |
| Voltage: | 380V 50Hz 3Phases | Video Outgoing-inspection: | Provided |
| Warranty: | 1.5 Years | Marketing Type: | New Product 2020 |

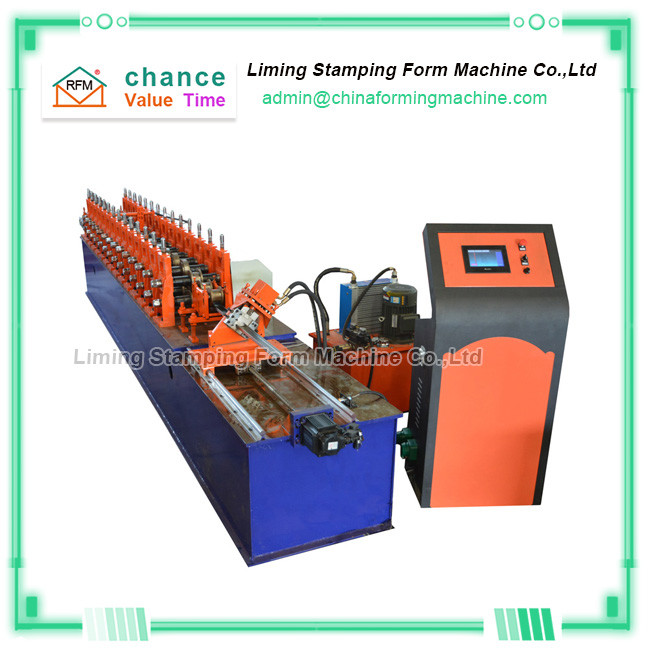

Easy-To-Install Shopping Malls Use CU Ceiling Keel Roll Forming Machine
CU Ceiling keel roll forming machine is used to produce CU shape ceiling keel products
The CU ceiling keel plays a very important role in the ceiling decoration. It is the skeleton of the ceiling and plays the role of modeling and load-bearing. It is connected with the floor slab through a screw to fix the ceiling or object.
CU ceiling keel roll forming machine process:
uncoiling-feeding-forming-punching-cutting-splicing
Machine configuration, decoiler, feeding frame, forming host, online punching, die cutting, light steel receiving frame, plc electronic control system, hydraulic pump station system
The CU ceiling keel roll forming machine can produce CU ceiling keels of different sizes through continuous cold rolling. Because the ceiling of the shopping mall needs to bear the weight, the raw material is strip steel
The products produced by the CU ceiling keel forming machine are equipped with bumps on the rollers of the machine during the forming process. The products produced can help the screws to be better fixed during the assembly process and are not easy to fall off.
Main parameters of CU Ceiling Keel Roll Forming Machine
| No. | Item | Description |
| 1. | Product’ sizes | 29×29 |
| 2. | Processing material | GI |
| 3. | Processing thickness | 0.3-1.2MM |
| 4. | Main motor power | 4kw |
| 5. | Power of hydraulic station | 3kw |
| 6. | Quantity of roller stations | 10 |
| 7. | Production speed | 15-25m/min |
| 8. | Diameter of shafts | Φ40mm |
| 9. | Material of rollers | Cr12 steel with vacuum heat treatment HRC57°-60° |
| 10. | Material of shafts | 45# steel quenched and tempered |
| 11. | Material of cutting blades | Cr12 mould steel with quenched treatment |
|
12.
|
Size of machine | Approximate 4000mm(L)×900mm(W)×1300mm(H) |
| 13. | Theoretical weight | Approximate 2000KGS |
| 14. | Driven method | Chain and gear |
| 15. | Brand of PLC | Delta |
