| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-LG-23 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50set/Year |
| Name: | Light Steel Keel Forming Machine | Raw Material: | PPGI、GI |
|---|---|---|---|
| Certification: | New 2020 | Roller Material: | 45#steel |
| Feeding Width: | Provided | Control System: | PLC(SIEMENS) |
| Warranty: | 12month | Weight: | 3-3.5 Tons |
| Voltage: | 380V 50Hz 3Phases | After Warranty Service: | Online Support, Spare Parts, Field Maintenance And Repair Service |

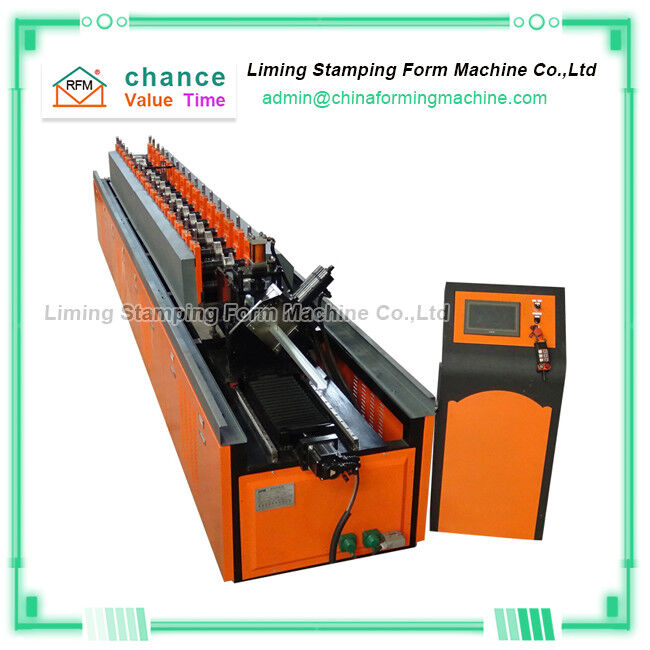

Easy-to-install small temporary stage construction light steel keel forming machine
We generally use light steel frameworks for temporary stage construction, because of its light weight, easy disassembly, high stability and strong compression resistance. More and more people choose light steel frameworks.
It is assembled from the products produced by the light steel keel forming machine, so the light steel keel needs to have precise size requirements and quality to ensure the stability and safety of the stage.
The light steel keel forming machine is composed of an uncoiler, a feeding frame, a forming host, a shear, a receiving frame, a PLC control system and a hydraulic pump station.
After the raw material steel belt is formed by rolling, it is assembled and assembled into a stage; if your market has a lot of stage construction and building decoration, the light steel keel forming machine can open your market for you.
The light steel keel forming machine produced by LIMING is equipped with remote teaching and video teaching, which can guarantee the installation efficiency of the light steel keel forming machine after delivery.
Main parameters of T-shaped keel forming machine
| Machine name |
light steel keel forming machine |
| Control System | NC-PLC Colored Touch Screen |
| Main Power | 5.5 kw |
| Pump Power | 4 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 15-25m/min |
| Roll Station | 15-25stands |
| Roller Diameter | 52mm |
| Feeding Thickness | 0.3-1.2mm |
| Cutter Standard | Cr12 |
| Roller Standard | 45# Steel plating Chrome with heat treatment |
| Cr-Plating Size | 0.05mm |
| Overall Size | custom made |
| Total Weight | 3-3.5T |
