| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-LG-24 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50set/Year |
| Name: | Keel Frame Roll Forming Machine | Raw Material: | PPGI、GI |
|---|---|---|---|
| PLC Brand: | Delta | Roller Material: | 45#steel |
| Feeding Width: | Provided | Control System: | PLC(imported Brand) |
| Shaft Diameter: | 50 Mm | Warranty: | 18 Month |
| Voltage: | 380V 50Hz 3Phases | After Warranty Service: | Online Support, Spare Parts, Field Maintenance And Repair Service |

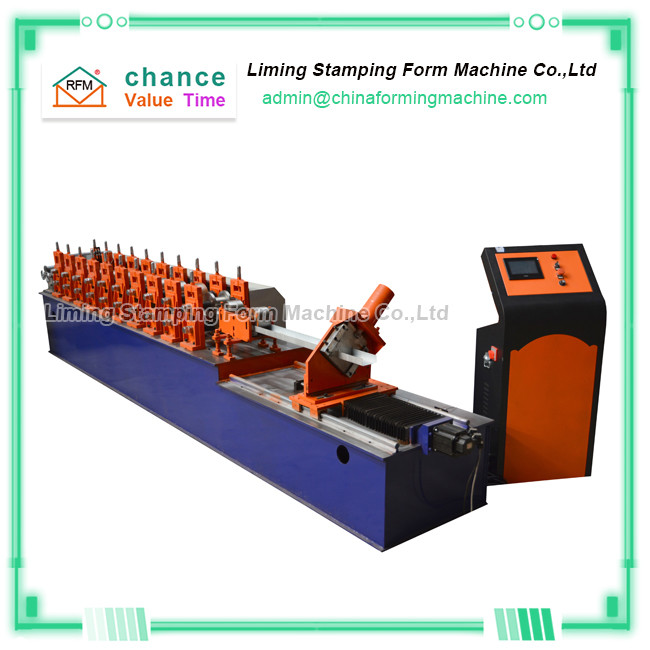

Factory Wholesale Light Gauge Steel Keel Frame Roll Forming Machine
Light steel dragon skeleton roll forming machine is a roll forming machine for producing decoration keel
In the large-scale construction of real estate in recent years, the house decoration industry has become the most promising industry at present. In house decoration, a large number of light steel keel products will be used for ceiling and space partition. Among them, CU type products are the most popular.
The light steel dragon skeleton roll forming machine can roll the strip steel into a product that can be assembled and matched. It can be used for the ceiling of a house. Because of the heavy load and stable quality of light steel, it has become the most marketable product.
A light steel dragon skeleton roll forming machine can win you most of the orders from decoration companies in the local market, helping you seize the market and form a brand effect.
LIMING company has 26 young steel dragon skeleton roll forming machine manufacturing experience, can solve any problems about production for you.
Main parameters of Keel Frame Roll Forming Machine
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 0.3-0.8 mm |
| Roller material | High grade 45# forged steel, surface hard chromium plating |
| Shaft material | High grade 45# forged steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 50mm or as your requirement |
| Main frame | 300 H steel |
| Forming steps | 14 stations |
| Productivity | 10-15m/min |
| Hydraulic station power | 5.5 KW |
| Hydraulic pressure | 10-12MPa |
| Appearance size | 6.5*1.5*1.5 m |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
