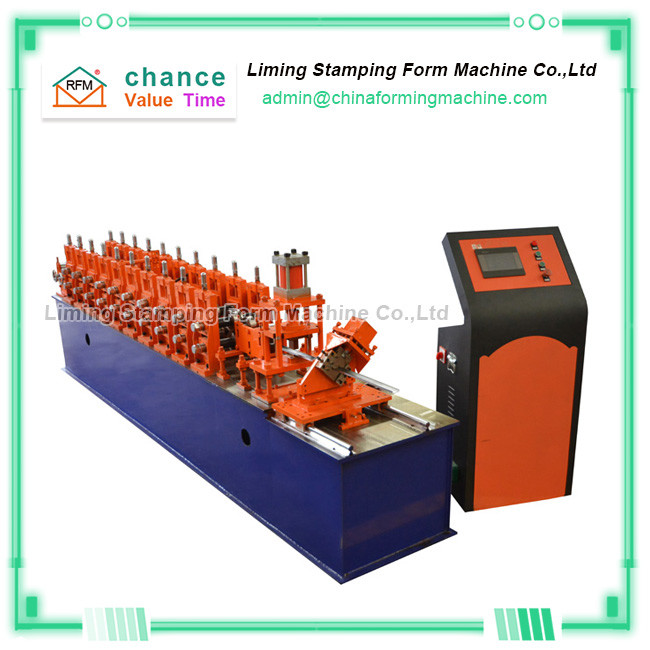

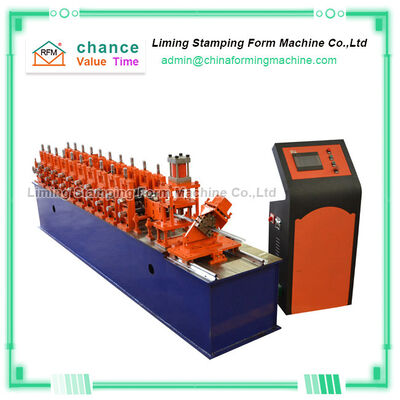

U-shaped stud machine uses strip steel as raw material to produce complex cross-section profiles through continuous cold rolling (products include: light steel keel, paint keel, cassette keel, various building profiles, steel structures, steel-lined door frame profiles, High-speed retaining wall) blocking, etc.) and different specifications of cold bending, baking machine equipment, using PLC control.

Features of U-shaped stud machine:

1. Mill rolling capacity: width ≤150mm, plate thickness 0.6-2.0mm

2. Production speed: 6-13 m/min

3. Total installed capacity: about 5.5kw

4. Production output: 15 meters long X 2.5 meters wide

1. The equipment is controlled by PLC, and double safety protection is set during normal production.

2. The bed is welded steel plate. And it is tempered to eliminate internal stress and avoid hollow deformation.

3. The forming frame is a cast iron structure and has been tempered. High strength, replace long.

4. The material of the roller shaft is 40Cr, and the hardness is HB280 after quenching and tempering.

5. The material of the forming mold is GCr15, quenched, and hardness: HRC56-62°C.

6. The transmission structure is gear box transmission. Each forming frame has a light steel keel machine. It can ensure that the equipment runs over time, high intensity, and long in length.

U-shaped stud machine processing technology: unwinding----straightening----rolling forming----cutting----receiving

U-shaped stud machine equipment consists of: unwinding machine, guide frame, forming host, correction device, cut-to-length part, receiving table, electrical control part, etc.

The main parameters of U Stud Machine:
