| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | BV、ISO、SGS |
| Model Number: | LM-LG-26 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 55set/Year |
| Name: | Omega Light Steel Keel Roll Forming Machine | Raw Material: | PPGI、GI |
|---|---|---|---|
| Use: | Roof | Roller Material: | 45# |
| Feeding Width: | Provided | Control System: | PLC Control System |
| Cutting Blade Material: | Cr12 Heat Treatment | Warranty: | 18 Month |
| Voltage: | 380V Or Customized | After Warranty Service: | Online Support, Spare Parts, Field Maintenance And Repair Service |

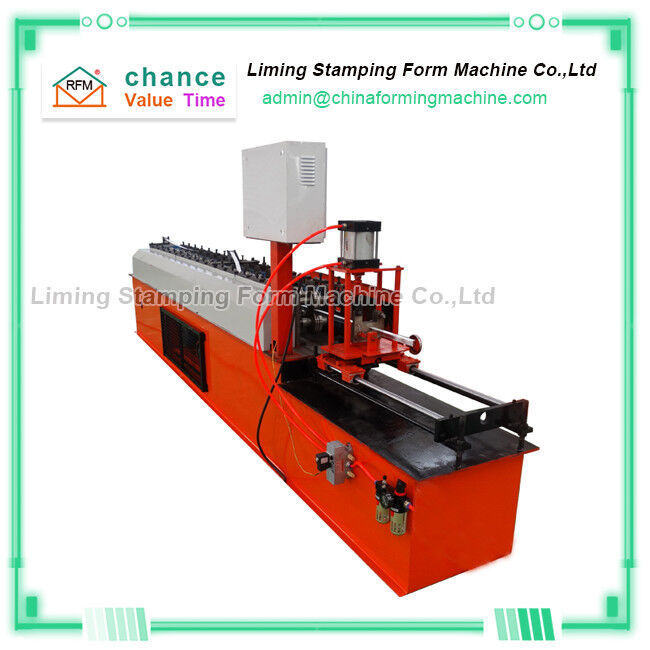

Industry Sales Are High Metal Ceiling T Grid Keel Roll Forming Machine
T Grid Keel Roll Forming Machine products are widely used in hotels, terminal buildings, train stations, stations, amusement parks, shopping malls, factories, office buildings, renovation of old buildings, interior decoration settings, ceilings and other places. Light steel (paint) keel ceilings It has the functions of light weight, high strength, adaptability to waterproof, shockproof, dustproof, sound insulation, sound absorption, and constant temperature. It also has the advantages of short construction period and simple construction.
Technical parameters of T keel machine:
T Grid Keel Roll Forming Machine installation size: 7600mm×1100mm×1300mm
Number of molding channels: 16 channels
Roller material: 45# steel
Roller plating thickness: 0.05mm
Cutter material: Cr12
Forming speed: 9-10m/min.
Electric control system: industrial computer PLC control
Host power: 5.5KW
Hydraulic station power: 5.5KW
Sheet thickness: 0.2-0.4mm
Sheet width: 175mm
The main parameters of T Grid Keel Roll Forming Machine:
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 119 mm coil sheet |
| 2 | Thickness of feeding material | 0.3 mm coil sheet |
| 3 | Roller station | 20-25 stations |
| 4 | Shaft Diameter | 45-55 mm |
| 5 | Productivity | 8-12 m/min |
| 6 | Rollers' material | 45# steel |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 2.5-8 ton |
| 9 | length | 5.5-11m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 8 tons |
| 13 | Motor | 3-15 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6 -2 inch |
| 16 | Cutting system | Hydraulic cutter |
