| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-cladding5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Key Selling Points:: | Easy To Operate | Rolling Thinckness:: | 0.3-0.8mm |
|---|---|---|---|
| Suitable Material:: | PPGI | Production Capacity:: | 8-12 M/min |
| Production Experience:: | 25 Years | Feeding Width:: | 1000mm, 1250mm |
| Raw Material:: | Galvanized Sheet | Dimension(L*W*H):: | 5*1.5*1.8 M |
| Voltage: | 380V 50Hz 3phases | Warranty:: | 2 Years |
| Highlight: | PPGI Standing Seam Panel Machine,380V Wall Cladding Machine,PPGI Wall Cladding Machine |
||

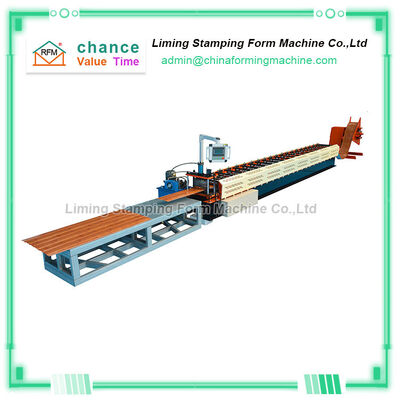

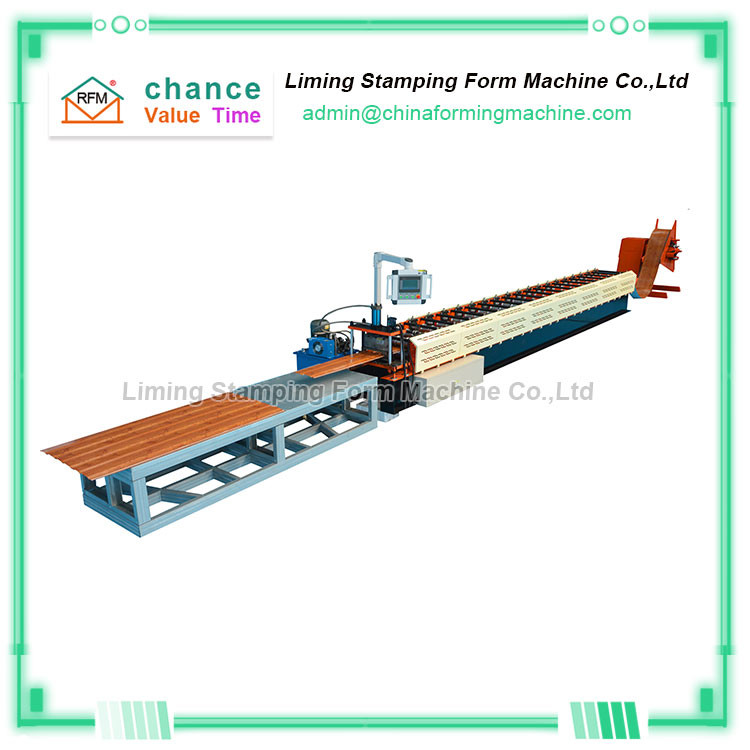

High Quality Standing Seam Steel Wall Cladding Sheet Making Roll Forming Machine
"High Quality Standing Seam Steel Wall Cladding Sheet Making Roll Forming Machine " is used to produce exterior wall decorative panels.
"High Quality Standing Seam Steel Wall Cladding Sheet Making Roll Forming Machine " adopts computer controller program control, automatic fixed length, automatic cutting, touch screen operation, simple and convenient
"High Quality Standing Seam Steel Wall Cladding Sheet Making Roll Forming Machine " is fully automatic PLC computer programming control, automatic length measurement, hydraulic cutting, neat, standard board shape! Efficient and fast.
"High Quality Standing Seam Steel Wall Cladding Sheet Making Roll Forming Machine " uses color-plated zinc plate as a processing raw material, and continuously rolls it into a multi-pass roll mold.
The roll mold of the "High Quality Standing Seam Steel Wall Cladding Sheet Making Roll Forming Machine " is quenched at high temperature, and the mold hardness is between 58-62 degrees, with high wear resistance and long machine life.
Main parameters of High Quality Standing Seam Steel Wall Cladding Sheet Making Roll Forming Machine
| Part details | Item Name | Specification |
| Manual uncoiler | carrying capacity | 3 tons |
| Stype | Manual | |
| Raw coil | Coil material | PPGI |
| Coil thickness | 0.3-0.8 mm | |
| Machine body | Roller station | 10 station |
| Roller material | 45# steel | |
| Shaft material | 45# steel | |
| Shaft diameter | 55 mm | |
| Machine weight | About 4.5 tons | |
| Machine size | 4.5*1.5*1.5 m | |
| Speed | 8*12 m/min | |
| Cutter | Operate | Hydraulic cutting |
| Blade material | Cr12 | |
| Power | Operate | Chain transmission |
| Chain size | 1 inch chain | |
| Control system | PLC brand | Delta made in Taiwan |
| Motor power | 5.5 kw | |
| Hydraulic pump power | 4 kw | |
| Voltage | 380V 50Hz 3phase | |
| Machine color | As ur need | |
| Machine language | Chinese and English |
