| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-cladding6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Cutting Blade Material:: | Cr 12 High Grade Steel | Rolling Thinckness:: | 0.3-0.8mm |
|---|---|---|---|
| Core Components:: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC | Production Capacity:: | 8-12 M/min |
| Production Experience:: | 25 Years | Feeding Width:: | 1000mm, 1250mm |
| Raw Material:: | Galvanized Sheet | Shaft Material:: | 45# Steel Forging Treatment |
| Voltage: | 380V 50Hz 3phases | Warranty:: | 2 Years |
| Highlight: | 12 Steps Wall Panel Machines,ISO Cladding Roll Forming Machine,12 Steps Cladding Roll Forming Machine |
||

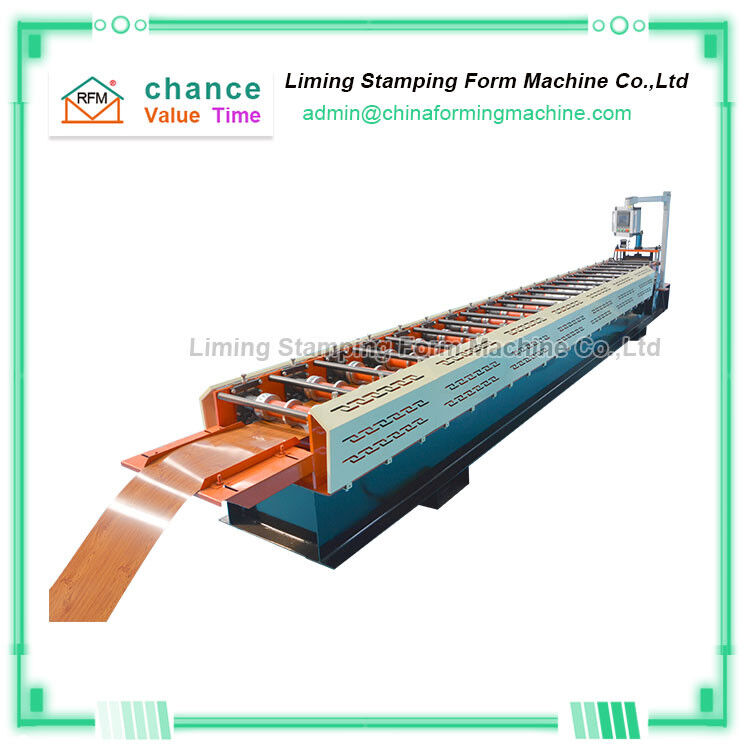

High Rib Aluminium Coated Steel Wall Cladding Roll Forming Machine
From the architectural point of view, the exterior wall hanging board is a construction method, that is, hanging the board outside the wall through dry hanging and other construction methods to achieve the purpose of decoration or insulation. From the product point of view, the external wall hanging board is a kind of building material, which is a building board used for external walls.
The exterior wall panels produced by the "High Rib Aluminium Coated Steel Wall Cladding Roll Forming Machine" have the basic characteristics of corrosion resistance, high temperature resistance, aging resistance, no radiation, fire resistance, insect resistance, and no deformation.
The roll mold of the"High Rib Aluminium Coated Steel Wall Cladding Roll Forming Machine" is quenched at high temperature, and the mold hardness is between 58-62 degrees, with high wear resistance and long machine life.
"High Rib Aluminium Coated Steel Wall Cladding Roll Forming Machine" adopts die cutting, and the cutting adopts Cr12mov material. After machine processing, the board has good toughness, wear resistance, sharpness and fast cutting. There are no burrs on the board, which is convenient for construction and installation.
Main parameters of High Rib Aluminium Coated Steel Wall Cladding Roll Forming Machine
| No | Item | Parameters |
| 1 | Material of frame | (high grade) 400mm H shape steel |
| 2 | Total power | 4KW |
| 3 | Step of forming roller | 12 steps |
| 4 | Diameter of shaft | 74mm |
| 5 | Thickness of middle plate | 12mm |
| 6 | Bearing | 6210(high grade) |
