| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-cladding8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type:: | Tile Forming Machine | Rolling Thinckness:: | 0.3-0.8mm |
|---|---|---|---|
| Tile Type:: | Colored Steel | Production Capacity:: | 8-12 M/min |
| Production Experience:: | 25 Years | Feeding Width:: | 1000mm, 1250mm |
| Shaft Material:: | 45# Steel Forging Treatment | Voltage: | 380V 50Hz 3phases |
| Warranty:: | 2 Years | ||
| Highlight: | Siding Wall Panel Machines,Colored Steel Wall Panel Machines,13 Steps Wall Panel Machines |
||

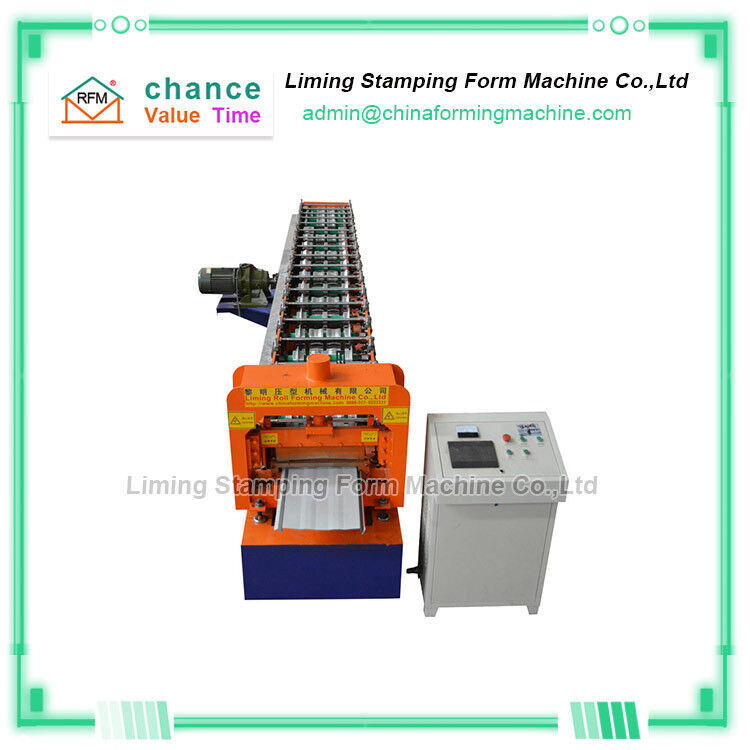

Wall Cladding Plate Colored Steel Siding Wall Panel Roll Forming Machine
The market prospect of "wall cladding plate colored steel siding wall panel roll forming machine " is very broad, because the metal exterior wall panel produced by "wall cladding plate colored steel siding wall panel roll forming machine " has greatly improved the decorative effect.
"wall cladding plate colored steel siding wall panel roll forming machine " has a variety of optional raw material patterns, such as: imitation wood grain, imitation stone pattern, imitation tile pattern, imitation brick pattern, imitation spray pattern, various texture and color conversion and mixing, etc. .
Compared with traditional exterior wall thermal insulation decorative building materials, the metal exterior wall panels produced by the "wall cladding plate colored steel siding wall panel roll forming machine " have excellent cold resistance and thermal insulation properties.
"wall cladding plate colored steel siding wall panel roll forming machine " greatly reduces the energy consumption of heating and cooling, thereby saving energy consumption.
"wall cladding plate colored steel siding wall panel roll forming machine " is cost-effective and shows absolute advantages in exterior wall insulation and decoration materials.
Main parameters of Wall Cladding Plate Colored Steel Siding Wall Panel Roll Forming Machine
| Type | wall cladding plate colored steel siding wall panel roll forming machine |
| Effective width | AS DESIGN |
| Raw materials width | AS DESIGN |
| Product thickness | 0.3-0.8mm |
| Processing speed | 10-12m/min |
| Step of rollers | 13 steps |
| Material of roller shafts | 45 #chrome steel |
| Shear material | Cr12 high strength steel with quenching |
| Control system | PLC control with touch screen |
| Voltage | 380v/50hz/3phase |
| Power | 4kw |
| Dimension | 5500*1000*1500mm |
| Weight | 2tons |
| Warranty | 14 months |
