| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-cladding11 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Machine Frame:: | 350h Steel | Rolling Thinckness:: | 0.35-0.6mm |
|---|---|---|---|
| Type:: | Tile Forming Machine | Production Capacity:: | 15-20m/min |
| Production Experience:: | 25 Years | Feeding Width:: | 900mm |
| Weight:: | 3000kg-20000kg | Roller Material:: | 45#steel Chrome Plated |
| Warranty:: | 2 Years | Dimension(L*W*H):: | 6500mm*1300mm*1400mm |
| Highlight: | 20m/Min Panel Roll Forming Machine,L6500mm Panel Roll Forming Machine |
||

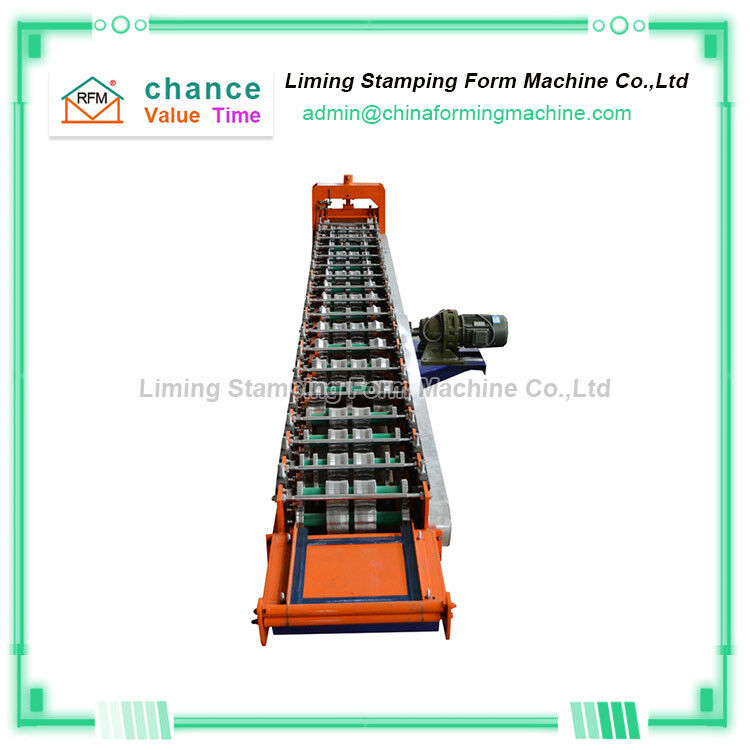

Best Price Aluminum Wall Metal Cladding Panel Roll Forming Machinery
"Best price aluminum wall metal cladding panel roll forming machinery" has the advantages of fast installation speed and light weight. It can be applied to various light industrial equipment and has broad application prospects.
The installation method of "Best price aluminum wall metal cladding panel roll forming machinery" is to hang the panel on the outside of the wall through dry hanging and other construction methods to achieve the purpose of decoration or heat preservation.
The metal exterior wall suspension panel produced by "Best price aluminum wall metal cladding panel roll forming machinery" is a composite material, which is mainly composed of three parts. The surface is a decorative metal panel, the middle layer is a polyurethane foam insulation layer, and the bottom surface is aluminum foil. The protective layer.
The exterior wall suspension panel produced by "Best price aluminum wall metal cladding panel roll forming machinery" also has the advantages of flame retardant, moisture resistance, corrosion resistance and aging resistance, and the service life can reach more than 30 years. The rich traditional colors and delicate textures will provide beautiful and lasting protection for the house.
Main parameters of Best Price Aluminum Wall Metal Cladding Panel Roll Forming Machinery
| Item | Specification |
| Decoiler | 5 tons /10 tons /12 tons or as your request |
| Roller material | 45# steel , 0.05mm chrome coated / GCR15 |
| Shaft diameter | 70mm, 100% solid |
| Machine frame | 400H steel |
| Machine structure thickness | 20mm |
| Hydraulic cutting | Guide Pillar cutting style |
| PlC brand | Delta ,Siemens ,panasonic, |
| Touch screen computer | touchwin |
| Receiving table | 3meters * 2 sets |
| Chain transmission | 1" |
| Chain wheel | 1" |
| Voltage | 380V/50HZ/3phase or as your request |
| Computer box type | placed in ground or fixed on machine |
| Machine color | customzied |
