| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | BV、ISO |
| Model Number: | LM-LG-28 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 55set/Year |
| Name: | Double Type Cold Roll Forming Making Machine | Type: | Tile Forming Machine, Tile Forming Machine |
|---|---|---|---|
| Tile Type: | GI | Applicable Industries: | Building Material Shops |
| Feeding Width: | Provided | Control System: | PLC(Delta) |
| Cutting Blade Material: | Cr12 Heat Treatment | Warranty: | 2 Years |
| Voltage: | 380V Or Customized | After Warranty Service: | Online Support, Spare Parts, Field Maintenance And Repair Service |

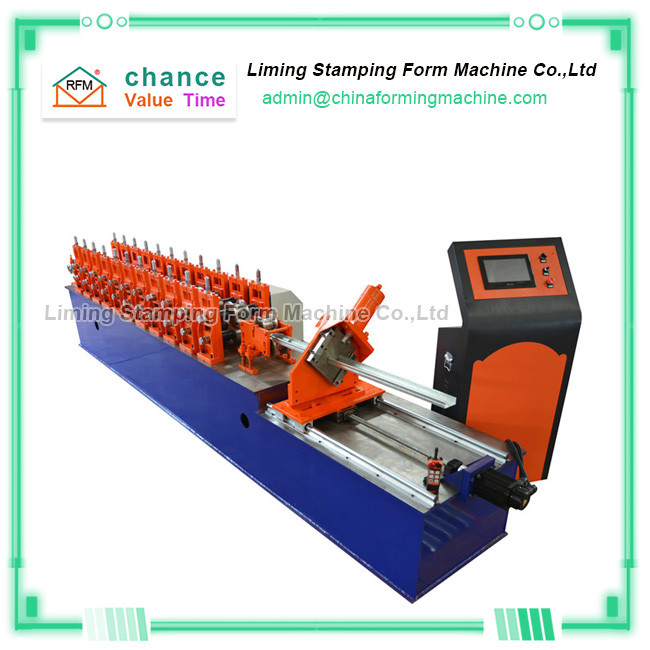

Gypsum Board Ceiling C-Type Light Steel Keel Forming Machine
When decorating gypsum board ceilings, decorators usually use C-shaped light steel keel as the main keel support. Because of the fire resistance and corrosion resistance of C-type light steel keel, it is highly praised by the decoration or engineering industry. If you need C-shaped light steel keel,
type light steel keel forming machine for gypsum board ceiling can meet your needs for producing C-type light steel keel
C-type light steel keel forming machine is composed of decoiler, feed frame, forming main machine, special cutting machine, light steel receiving frame, PLC electronic control system and hydraulic pump station system.
The C-type light steel keel forming machine realizes the continuous production from the coiled paper to the single-piece offline forming, which greatly saves labor and improves work efficiency.
The main parameters of C-Type Light Steel Keel Forming Machine:
| No. | ||
| 1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
| 2 | Material width | 1250mm or as your required |
| 3 | Material thickness | 0.3-0.8 or as your required |
| 4 | Production Capacity | 12-14m/min |
| 5 | Cutting blade materi | Cr 12 High Grade Steel |
| 6 | Hydraulic pump power | 3.5kw |
| 7 | Electrical control system | PLC control system with inverter |
| 8 | Shaft diameter | 70mm |
| 9 | Roller station | 15 rows, depend on your panel profile drawing |
| 10 | Roller | high grade 45# steel, hard chrome plating |
| 11 | Working time | 12-24 hours |
| 12 | workers | 1-2 only |
| 13 | Cutting head material | Cr 12 mould steel with quenched treatment |
| 14 | Voltage | 380V 3Phase 50Hz or as your required |
| 15 | Weight | 3.2T |
| 16 | The machine size | 7000mm*1500mm*1500mm |
