| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO |
| Model Number: | LM-LG-31 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Name: | C-Shaped Keel Forming Machine | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | PPGI、GI | Warranty: | 12month |
| Applicable Industries: | Manufacturing Plant | Rolling Thinckness: | 0.4-1.2mm |
| Control System: | PLC(imported Brand) | Color: | As Per Your Wish For Cold Roll Forming Machine |
| Voltage: | 380V 50Hz 3Phases | After Warranty Service: | Online Support |

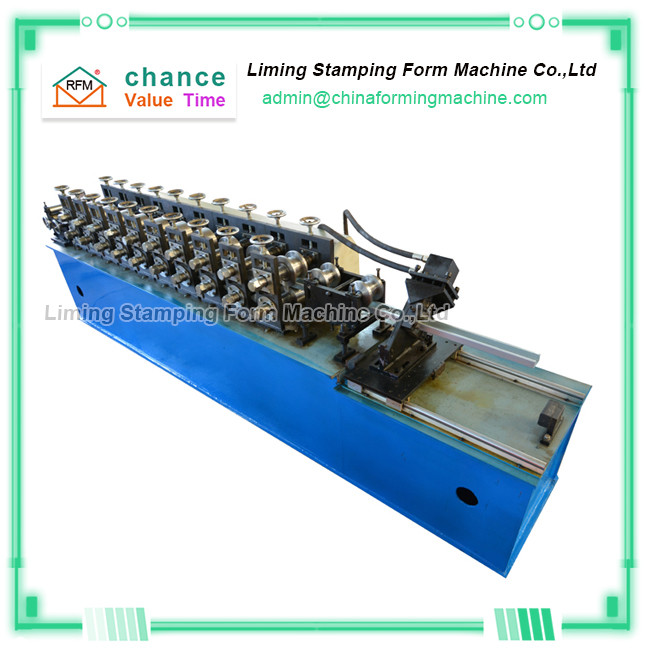

Supermarket Ceiling C-Shaped Keel Forming Machine
When decorating the ceiling in a new supermarket, considering that the supermarket needs to install a lot of supplementary lights, the decoration workers will use C-shaped auxiliary keels and U-shaped main keels as ceiling frames, which are connected to the floor deck through threaded rods to fix the ceiling Or objects. Therefore, a C-type keel forming machine is required.
The C-type keel forming machine uses a wire-cut middle plate to connect with the body through bolts, which greatly improves the stability and accuracy of the machine to ensure that the produced profiles are accurate in size and strong in load-bearing capacity.
At the same time, the twist-off shear installed on the C-shaped keel forming machine can protect the profile from deformation to the greatest extent during the cutting process, and the profile after shearing has no burrs.
The products produced by the C-type keel forming machine have accurate dimensions, high straightness, and strong load-bearing capacity, which can be used for profile sales and engineering construction.
The main parameters of C-Shaped Keel Forming Machine
| No. | Main parameter of light gauge steel frame machine | |
| 1 | Production | CD 60 27;UD 27 23 |
| 2 | Roller station | 12 rows |
| 3 | Dimensions | 4500*800*800mm |
| 4 | Power | 4KW |
| 5 | Thickness of the plate | 0.2-0.6mm or 0.6~1.0mm |
| 6 | Productivity | 25m/min |
| 7 | Middle plate thickness | 20mm |
| 8 | Diameter of shaft | 45mm |
| 9 | Diameter of roller | 100mm |
| 10 | Weight | About 3T |
| 11 | Voltage | 380V 50Hz, 3 phase |
| 12 | Cutter Material | Cr12 |
| 13 | Roller Material | GCr15 |
| 14 | Transmisson | Gear box |
