| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、SGS |
| Model Number: | LM-LG-34 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300set/Year |
| Name: | C Channel Forming Machine | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Steel、GI/PPGI | Application: | Steel Structure |
| Applicable Industries: | Manufacture | Machinery Test Report: | Provided |
| Warranty: | 15 Month | Core Components: | Motor, Pump, Gearbox, Engine, PLC |
| After Warranty Service: | Video Technical Support, Online Support | Key Selling Points: | High Productivity |

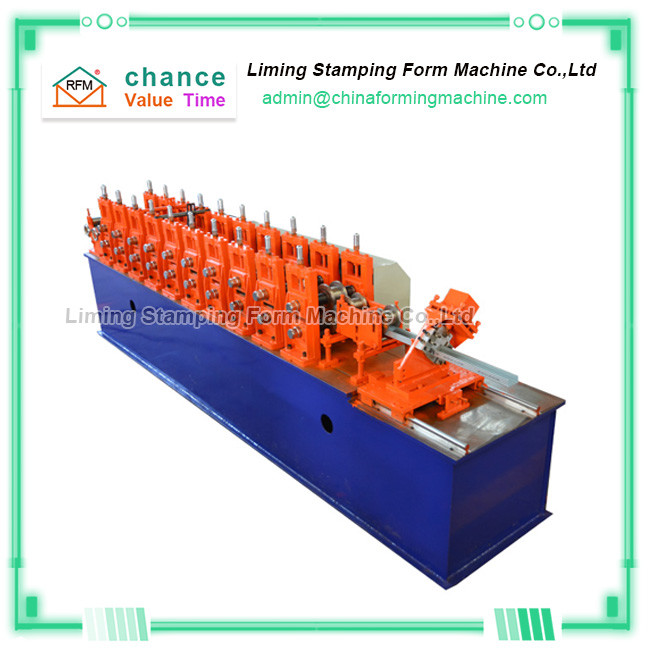

C Shape Keel Forming Machine For Office Building Ceiling
Office buildings are the image of enterprises and companies. The first impression left by everyone who enters and exits is derived from the design of office buildings. Therefore, when designing the “ceiling” of office buildings, C-shaped main keel and U-shaped auxiliary keel are used as the frame. , L-shaped keel edging, so that the "ceiling" after installation is neat and clean. Therefore, a C-shaped keel forming machine is needed to produce C-shaped keels.
The welded body of the C-shaped keel forming machine produced by LIMING is equipped with a positioning keyway, so that the body and the cast intermediate plate can be closely connected to ensure the "straightness" and "perpendicularity" of the cast intermediate plate.
The cast middle plate used by the C-type keel forming machine is formed by casting, with double holes at the bottom and a mounting keyway, and a triangular rib on the outside to ensure sufficient compression resistance and greatly increase the service life of the machine.
Our company has many years of experience in producing C-shaped keel forming machines, and can provide you with a cost-effective solution and high-precision C-shaped keel forming machines within your budget requirements.
So we look forward to cooperating with you, you are welcome to inquire
The main parameters of Keel Forming Machine
| Under Frame | Steel plate welding |
| Sidewall | Memorial archway type |
| Transmission | Gear |
| Voltage Standard | 380V |
| Motor Power | 5.5kw |
| Forming Speed | 15m/min |
| Roller Station | 12-20 Steps |
| Shaft Diameter | 45mm Solid |
| Shaft Material | 45# steel |
| Roller Material | GCr15 |
| Cutting Type | Hydraulic Tracking Cutting |
| Cutting Die Material | Cr12 |
| Control Method | Automaitc PLC |
