| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-LG-35 |
| Minimum Order Quantity: | 1 |
| Price: | USD 23000 |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200set/Year |
| Name: | C Channel Roll Forming Machine | Type: | Roll Forming Machine |
|---|---|---|---|
| Forming Pass: | 12 Lanes | Warranty: | 12 Month |
| Application: | Steel Structure | Roll Material: | Gr12 |
| Machinery Test Report: | Provided | Forming Machine: | Track Roll Forming Machine |
| Product Speed: | 50m/min | Hydraulic Power: | 4KW |

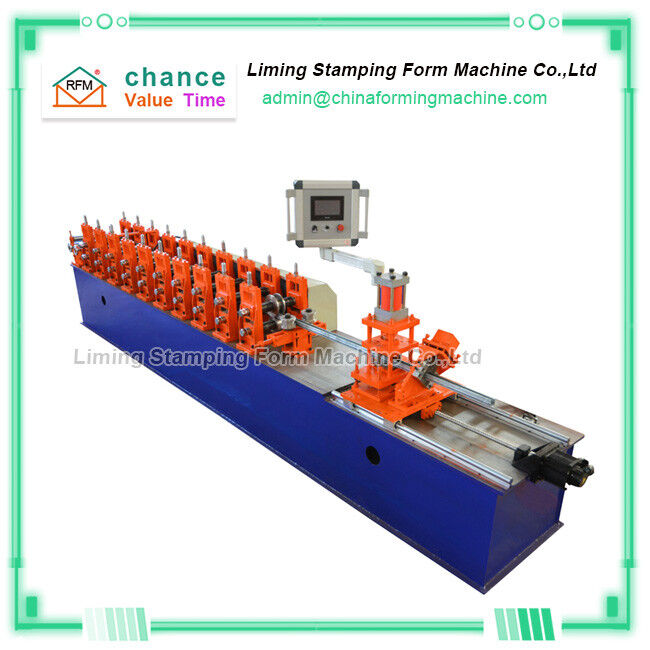

12 Row Forming Office Building Partition C-Type Keel Forming Machine Production Speed 50m / Min
In the initial decoration of the office building of the company, the designer will use the "partition wall" to divide the working areas of different departments, thus reflecting the company's clear division of labor. Since the "partition wall" profile will use C-shaped keel, a C-shaped keel forming machine is required To help produce C-shaped keel profiles.
The C-type keel forming machine produced by our company is through the "upgrade optimization" of the traditional C-type keel forming machine, and adopts a new PLC system control, which realizes the characteristics of overall automatic control, convenient operation and high efficiency
12 row forming office building partition C-type keel forming machine production speed 50m/Min parameters
|
Roll Forming Machine
|
||
|
1
|
Structure
|
Cast Iron Roller Fixer
|
|
2
|
Main Power
|
5Kw Siemens Motor
|
|
3
|
Forming Stations
|
12 Stations
|
|
4
|
Driving Type
|
Gear Driving
|
|
5
|
Diameter of Shaft
|
50mm
|
|
6
|
Max. Rolling Speed
|
50m/min or Higher Speed As Required
|
|
7
|
Material of Roller
|
Cr12 with Quenched Treatment
|
|
8
|
Material of Blade Mould
|
Cr12, Quenched 58-62
|
|
9
|
Cutting Type
|
Hydraulic Mould Cutting(or Flying Cutter, without stop)
|
|
10
|
Length Cutting Tolerance
|
± 1.0mm
|
|
11
|
Electrical Requirement
|
380V, 50Hz, 3Phase
|
The C-type keel forming machine also adds an H hole punching device, which makes the installation of the profile more convenient and quick, thus helping you shorten the construction period and quickly win the market competitiveness.
Due to the reasonable design of the C-shaped keel forming machine produced by our company and the high processing precision, the advantages of good stability and high precision of the produced profiles are well received by the decoration and construction industries.
