| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-LG-37 |
| Minimum Order Quantity: | 1 |
| Price: | USD26000 |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 60 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 150set/Year |
| Name: | High-Speed Omega Keel Forming Machine | Machinery Test Report: | Provided |
|---|---|---|---|
| Type: | High Speed | Forming Pass: | 14 Lanes |
| Warranty: | 12 Month | Roll Material: | Gr12 |
| Core Components: | PLC（SIEMENS） | Weight: | 5T |
| Product Speed: | 50m/min | Hydraulic Power: | 4KW |

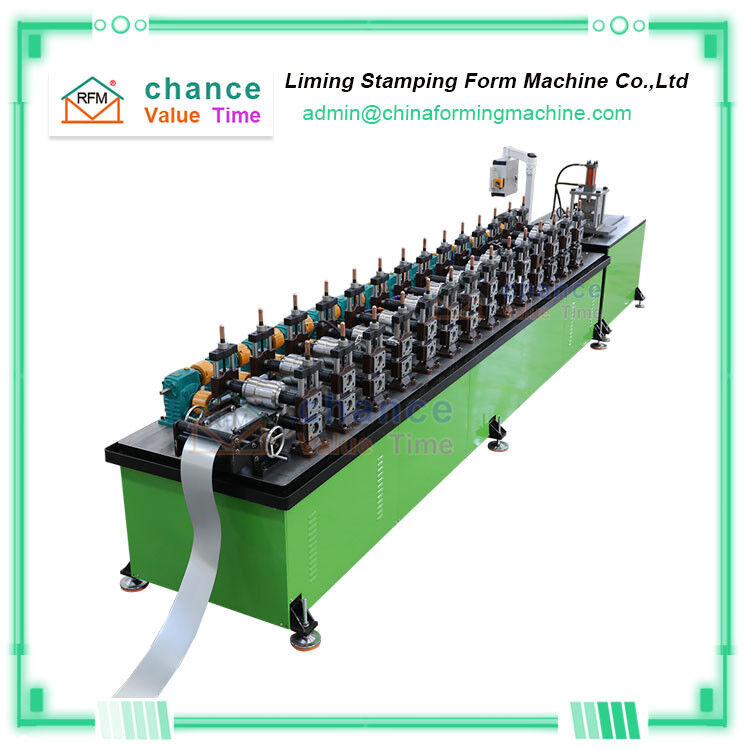

50m/Min High Speed Omega Keel Forming Machine Reducer Drive For Ceiling Decoration
n the initial decoration of ceilings in office buildings, homes, shopping malls, hotels, etc., designers often choose Omega keel as the frame of the ceiling. Omega keel has the characteristics of easy installation, corrosion protection, strong load-bearing capacity, and high dimensional accuracy. It is a product with far leading sales in the building materials market, so an Omega keel forming machine is needed.
50m/Min High Speed Omega Keel Forming Machine Reducer Drive For Ceiling Decoration
| Sidewall structure | Memorial Archway Type |
| Roller Station | 12-20 Steps |
| Roller Material | Cr12 Steel,after rough turning then NC Lathe |
| Shaft diameter | 70mm |
| Shaft material | 45# steel with forging treatment |
| Motor Power | Hydraulic 5 5KW |
| Reducer Type | 250# |
| Production Speed | 50-60m/min(include forming/Cutting) |
| Transmission | Gear and Sprocket |
| Cutting Device | Servo tracking cutting |
| Cutting Motor | 5.5KW+3.5KW |
| Cutting Mold | Cr12MoV |
The Omega keel forming machine is optimized on the basis of the performance of the traditional Omega keel forming machine, and adopts a gear box transmission method to ensure that the Omega keel forming machine has a fast transmission speed, ample power, and can cope with thicker raw materials. The effect of rapid production has been achieved.
The Omega keel forming machine also uses a servo motor to drive the shearing method of the mold to keep the mold cutting and forming speed consistent to ensure that the cut of the product after cutting is not deformed and has no burrs.
At the same time, the Omega keel forming machine is also equipped with a whole machine protection device, which not only protects the high-speed Omega keel forming machine, but also prevents accidents. Therefore, Omega keel forming machine is the preferred machine for safe, fast and stable production.
