| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、SGS |
| Model Number: | LM-LG-39 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 180set/Year |
| Name: | L-Angle Light Steel Keel Forming Machine | Machinery Test Report: | Provided |
|---|---|---|---|
| Power: | 3KW-20.5KW | Tile Type: | Steel |
| Warranty: | 12 Month | Use: | ROOF |
| Control System: | PLC(imported Brand) | Weight: | About 3.5T |
| Product Speed: | 15-25m/min | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | L Angle Stud And Track Roll Forming Machine,20.5KW Stud And Track Roll Forming Machine,20.5KW L angle forming machine |
||

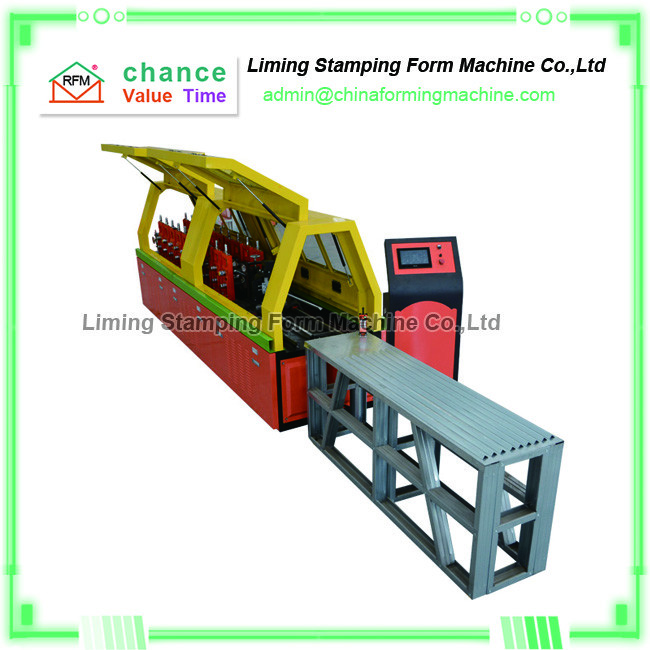

Fully Intelligent L-Angle Light Steel Keel Forming Machine For Decoration Corner Protection
L-angle light steel keel is a frequently used decoration profile. Decoration workers will use L-angle light steel keel for "wall corner protection, ceiling edging, window corner protection, etc.". Because L-angle keel has anti-corrosion, Because of its beautiful appearance and easy construction, it is very popular in the decoration industry and engineering industry, so we can provide you with L-angle keel forming machine.
The L-angle light steel keel forming machine produced by our company is developed by upgrading and optimizing on the basis of the traditional L-angle light steel keel forming machine. It does not require manual operation, automatic production, and realizes a production mode of zero labor and automatic packaging. , Can help you greatly improve production efficiency.
In order to ensure the quality of the profiles produced by the L-angle light steel keel forming machine, our L-angle light steel keel forming machine is equipped with Gr12c forming wheels that talk about multiple production processes (for example, rough turning, milling machine, quenching, fine turning, etc.) , So that the produced products have high accuracy and good linearity. At the same time, the L-angle light steel keel forming machine also uses a servo die cutting device to ensure that the produced profile cuts are clean and free of burrs.
The main parameters of L-Angle Light Steel Keel Forming Machine
|
NO
|
Item
|
Description
|
|
1
|
Product' sizes
|
According to customer's request
|
|
2
|
GProcessing material
|
GI
|
|
3
|
1Processing thickness
|
0.8-2mm
|
|
4
|
Main motor power
|
7.5kw
|
|
5
|
Power of hydraulic station
|
7.5kw
|
|
6
|
Quantity of roller stations
|
14stations
|
|
7
|
Production speed
|
Approximate 0-15m/min
|
|
8
|
Diameter of shafts
|
Φ70mm
|
|
9
|
Material of rollers
|
Cr12 steel with vacuum heat treatment HRC58°-62°
|
|
10
|
Material of shafts
|
45# steel quenched and tempered
|
|
11
|
Material of cutting blades
|
Cr12 mould steel with quenched treatment
|
|
12
|
Driven method
|
Chain drive
|
|
13
|
Brand of PLC
|
Yaskawa
|
|
14
|
Power supply
|
380V 50HZ 3Phases or at buyer's requirement
|
