| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | ISO、CE |
| Model Number: | LM-LG-41 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 220set/Year |
| Name: | U-Shaped Light Steel Keel Forming Machine | Machinery Test Report: | Provided |
|---|---|---|---|
| Power: | 3KW | Tile Type: | PPGI、GI |
| Warranty: | 18 Month | Use: | ROOF、wall |
| Control System: | PLC | Weight: | 3.5-4T |
| Product Speed: | 25-35m/min | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | 3 Phase Stud And Track Roll Forming Machine,10 Stands Keel Making Machine,3 Phase Keel Making Machine |
||

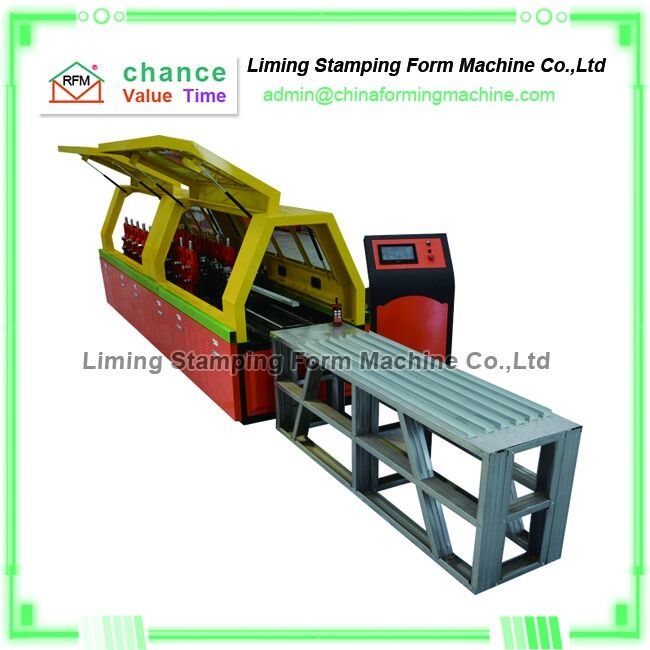

Hot Sale Fully Automatic U-Shaped Light Steel Keel Forming Machine For Decoration Partition
At the initial stage of ceiling decoration of shopping malls, designers will use U-shaped keels and C-shaped keels as supporting frames to ensure that the ceiling has strong load-bearing capacity and corrosion resistance. Therefore, we can provide you with a U-shaped keel forming machine to meet your needs for U-shaped keels.
The U keel forming machine is composed of an uncoiler, a feeder, a forming host, a shearing, and a hydraulic system. The whole machine is controlled by the PLC electronic control system. Only the production data is filled in to automatically complete the production of the U-shaped keel. , It has realized that while greatly improving the production efficiency for you, it also saves you manpower and costs.
The U keel forming machine adopts advanced overall machine protection devices to ensure the safety of the U keel forming machine, thereby preventing accidents that accidentally injure people during the machine transportation process.
The main parameters of U-Shaped Light Steel Keel Forming
| Control System | PLC Colored Touch Screen |
| Main Frame | 18mm steel welding |
| Main Power | 5.5kw |
| Power Supply | 380V, 3-Phase,50Hz or any |
| Forming Speed | 35m/min |
| Roll Station | 10 stands |
| Shaft Diameter | 42 mm |
| Feeding Thickness | 0.3-0.8mm |
| Cutter Standard | Cr12 |
| Roller Standard | 45# Plating Cr |
| All technical parameters can be changed, according to user's need. | |
