| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、BV |
| Model Number: | LM-LG-42 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 220set/Year |
| Name: | Cassette Keel Forming Machine | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Rolling Thinckness: | 0.3mm-1.0mm | Voltage: | 380V/50HZ |
| Tile Type: | PPGI、GI | Warranty: | 18 Month |
| Use: | ROOF、wall | Control System: | PLC Screen |
| Weight: | 3.5-4T | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | T0.3mm Light Keel Roll Forming Machine,Office Ceiling Light Keel Roll Forming Machine,T0.3mm ceiling roll forming machine |
||

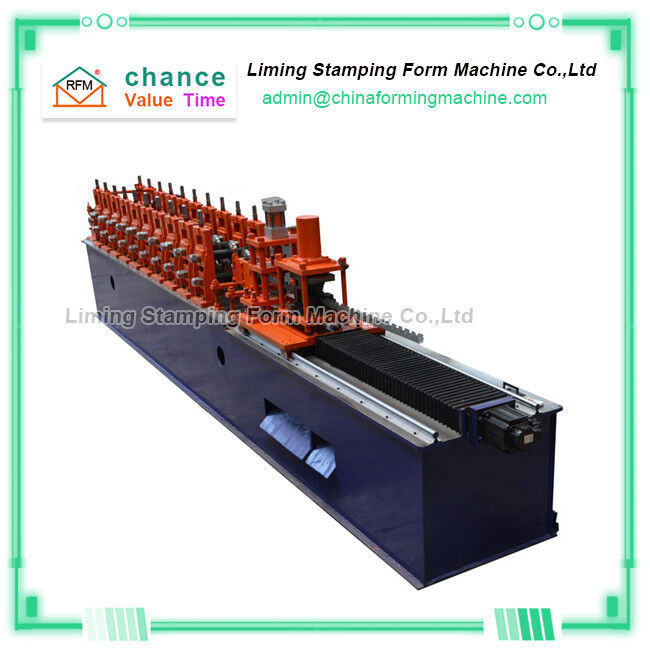

High-Speed Cutting Cassette Keel Forming Machine For Office Ceiling
Cassette keel forming machine is used to produce "cassette keel" equipment,
"Cassette keel" is often selected by designers as the main profile for office ceilings due to its easy installation, high precision, and corrosion resistance. So we can provide you with a cassette keel forming machine.
The cassette keel forming machine uses high-quality continuous hot-dip galvanized steel strip as the raw material and is rolled through a cold bending process to ensure that the cassette keel produced has good corrosion resistance and load-bearing capacity.
The cassette keel forming machine is also equipped with a servo punching and shearing device, which realizes the punching and shearing process without stopping the machine, thus helping you greatly improve your work efficiency.
At the same time, the products produced by the cassette keel forming machine have the advantages of light weight, fire resistance, corrosion resistance, gorgeous and clean, simple installation, etc., and are well received by the decoration industry and engineering industry.
The main parameters of Cassette Keel Forming Machine
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 0.3-0.8 mm |
| Roller material | High grade 45# forged steel, surface hard chromium plating |
| Shaft material | High grade 45# forged steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 50mm or as your requirement |
| Main frame | 300 H steel |
| Forming steps | 14 stations |
| Productivity | 10-15m/min |
| Hydraulic station power | 5.5 KW |
| Hydraulic pressure | 10-12MPa |
| Appearance size | 6.5*1.5*1.5 m |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
