| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-light 1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Voltage: | 380V 50Hz 3phases | Applicable Industries:: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Field Installation,commissioning And Training | Condition: | New |
| Weight: | About 3-5t | Tile Type: | Sandwich Panel,EPS And Rock Wool Sandwich Panel Roof And Wall Use |
| Use: | Roof,roof Or Wall,ROOF AND WALL | Rolling Thinckness:: | 15-100mm |
| Production Capacity:: | 15-20m/min | Minumal Cutting Length::: | 1200mm |
| Highlight: | Keel Steel Framing Machine,Low Noise Stud And Track Roll Forming Machine,Keel Stud And Track Roll Forming Machine |
||

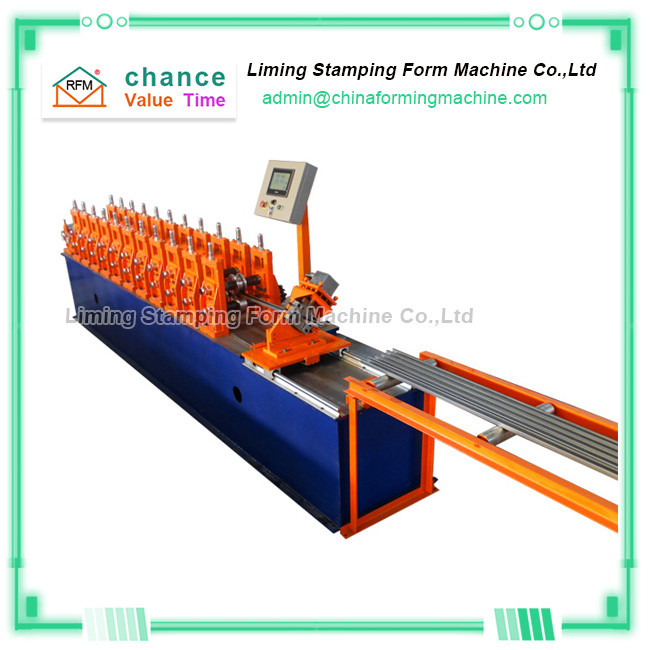

Low Noise Light Steel Frame Light Keel Roll Forming Machine
"Low noise light steel frame light keel roll forming machine" process:
Uncoiler guided feeding roll forming-cutting into finished products
Operation method of "Low noise light steel frame light keel roll forming machine" :
Manually fix the workpiece, manually roll it up, enter the PLC operation page, press the "start" button, after reaching the set size, automatically enter the plate making start according to the set program, the "low noise light steel frame light keel calender" machine automatically according to the board smooth.
Feeding guiding platform of "Low noise light steel frame light keel roll forming machine" :
The left and right guides are located at the paper inlet of the main unit. When working, the two sides of the raw material board enter the host through the left and right guide rails to keep the raw material board and the roll forming system in the correct position. The guide position can be adjusted by a manual screw mechanism, and the left and right sides can be adjusted separately.
"Low noise light steel frame light keel roll forming machine" cutting system:
The cutting system includes a cutting frame, a cutting die, a guide device and a cutting barrel.
Technical Parameters of Low Noise Light Steel Frame Light Keel Roll Forming Machine
| Type: | Tile Forming Machine |
| Tile Type: | Steel |
| Condition: | New |
| Use: | ROOF |
| Place of Origin: | Hebei, China |
| Model Number: | drywall keel |
| Power: | 3KW-20.5KW |
| Voltage: | 380V 50Hz 3phases |
| Weight: | about 3.5T |
| Certification: | CE/ISO9001 |
| Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Name: | Drywall galvanized sheet light steel keel roll forming machine |
| Raw material: | Galvanized Sheet |
| Usage: | inside/outside decoration |
| Material of rollers: | CR 12 Quenched HRC 58-62 |
| Cutting type: | Hydraulic Cutting |
| Cutting blade material: | High Grade Steel |
| function: | Steel Roof |
| Color: | Client's Request |
