| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-light 5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Voltage: | 380V 50Hz 3phases | Shaft Material:: | 45#steel |
|---|---|---|---|
| Dimension(L*W*H):: | 4.2*1.2*1.55m | Type: | Light Gauge Keel Cold Roll Forming Machine |
| Weight: | About 2.6T | Roller Diameter:: | 50mm |
| Forming Speed:: | 30m/min | Roller Material:: | 45#steel Chrome Plated |
| Forming Stand:: | 14groups | Cutting Blade:: | SKD11 |
| Highlight: | c channel Stud And Track Roll Forming Machine,380V C Channel Roll Forming Machine,50Hz C Channel Roll Forming Machine |
||

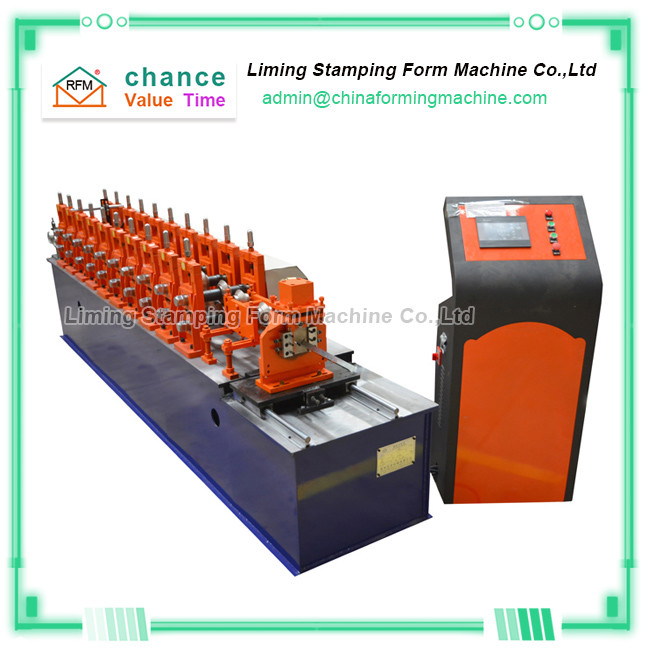

Steel C Channel Roll Forming Machine C Shape Profile Section Light Steel Keel Machine
“Steel c channel roll forming machine C shape profile section light steel keel machine", according to the specific requirements of customers, combined with the characteristics of the computer and the actual environment, designs the shape of the mold and analyzes the force.
The feed motion of the cutting motion usually consumes less power. The feed motion of the main partition keel machine can be continuous, such as the feed motion of a lathe, “Steel c channel roll forming machine C shape profile section light steel keel machine"; it can also be intermittent, such as a shaper table The feed movement.
“Steel c channel roll forming machine C shape profile section light steel keel machine" during the cutting process, three types of surfaces are formed on the workpiece:
Surface to be treated-the surface where a layer of metal will be cut off. Machined surface-a new surface formed by cutting a layer of metal from the workpiece. Machining surface---the excess surface of the workpiece being cut. Understand the forming rules and better design metal profile forming.
Technical Parameters of Steel C Channel Roll Forming Machine C Shape Profile Section Light Steel Keel Machine
| Type: | Tile Forming Machine |
| Tile Type: | galvanized |
| Production Capacity: | 30--40m/min |
| Rolling thinckness: | 0.3-0.8mm |
| Applicable Industries: | Manufacturing Plant |
| After Warranty Service: | Video technical support, Online support |
| Condition: | New |
| Use: | WALL |
| Place of Origin: | Hebei, China |
| Voltage: | 380V 50Hz 3phases |
| Dimension(L*W*H): | 5400mm*850mm*1150mm |
| Weight: | 3200KG |
| Certification: | CE/ISO9001 |
| Warranty: | 1.5 years |
| Key Selling Points: | Easy to Operate |
| Feeding width: | 1200mm |
| Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided |
| Marketing Type: | Hot Product 2019 |
| Warranty of core components: | 1.5 years |
| Core Components: | Motor, Gear, Gearbox, PLC |
| Forming speed: | 30--40m/min |
| Operation: | English touch screen |
