| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-light 18 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type: | Roll Forming Machine | Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Production Capacity:: | 15-20m/min | Dimension(L*W*H):: | 7.5*1.5*1.5m |
| After-sales Service Provided:: | Online Support, Field Installation, Commissioning And Training, Video Technical Support, Engineers Available To Service Machinery Overseas | Core Components:: | Motor, Bearing, Pump, PLC |
| Structure:: | Column Type | Shaft Diameter:: | 75mm |
| Cutting System:: | Hydraulic Cutting | Driving System:: | Gear Box Or Chain |
| Highlight: | 3kw Light Keel Roll Forming Machine,W Shape Light Keel Roll Forming Machine,L Shape Light Keel Roll Forming Machine |
||

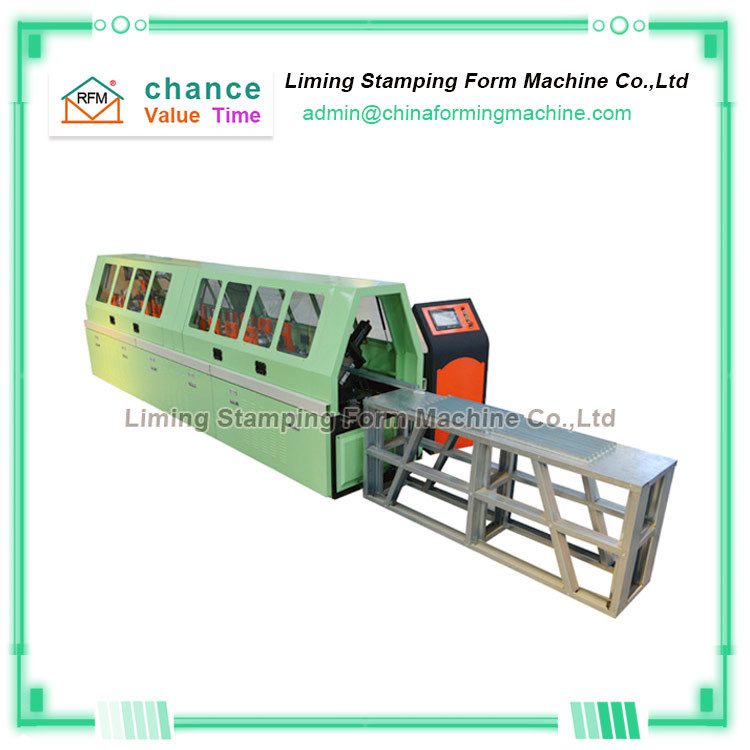

Steel C Channel Roll Forming Machine C Z U L W Shape Profile Section Light Steel Keel Machine
"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine " is equipped with high-quality 45 steel forming wheels and accurate measuring counters.
"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine ", the hydraulic station and transmission system are placed in the automatic high-speed U-shaped keel forming machine, which can effectively protect and save space.
"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine " has high structural stability, fast production speed and accurate product size. This is a necessary equipment for quality contour processing.
"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine ", the fierce discharge unloading is made of cast steel integral forging, the vertical plate thickness of the frame is 40mm, and the overall CNC CNC processing makes the size accuracy of the whole machine consistent.
"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine " can produce various specifications of high-precision U-shaped keel.
When you place an order and need to transport it, we will provide you with detailed machine accessories instructions and operating instructions for "Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine " to facilitate your inspection and operation.
Technical Parameters of Steel C Channel Roll Forming Machine C Z U L W Shape Profile Section Light Steel Keel Machine
| 1 | Name of commodity & specification | light gauge steel machine | |||||
| 2 | Main motor power | 3kw, 3 phase | |||||
| 3 | Hydraulic motor power | 3kw | |||||
| 4 | Hydraulic Pressure | 10-12MPa | |||||
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) | |||||
| 6 | Control System | PLC Delta Inverter | |||||
| 7 | Main Frame | 300mm H-Beam | |||||
| 8 | Backboard Thickness | 14mm | |||||
| 9 | Chain Size | 20mm | |||||
| 10 | Feeding Material | color steel coils | |||||
| 11 | Feeding Thickness | 0.3-1.2mm | |||||
| 12 | Productivity | 8-12m/min | |||||
| 13 | Roll Station | 11 | |||||
| 14 | Roller Diameter | 70mm | |||||
| 15 | Roller material | 45# steel | |||||
| 16 | Cutter material | Cr12 , quenched | |||||
| 17 | Cr-Plating Size | 0.05mm | |||||
| 18 | Overall Size | 3000×800×1000mm | |||||
| 19 | Total Weight | 2T | |||||
