| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-light 19 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type: | Roll Forming Machine | Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Production Capacity:: | 20-30m/min | Dimension(L*W*H):: | 11000 X 1400 X 1400mm |
| After-sales Service Provided:: | Online Support, Field Installation, Commissioning And Training, Video Technical Support, Engineers Available To Service Machinery Overseas | Core Components:: | Motor, Bearing, Pump, PLC |
| Structure:: | Column Type | Warranty: | 24 Months |
| Cutting System:: | Hydraulic Cutting | Driving System:: | Gear Box Or Chain |
| Highlight: | Steel Stud And Track Roll Forming Machine,7.5KW C Channel Making Machine,7.5KW Stud And Track Roll Forming Machine |
||

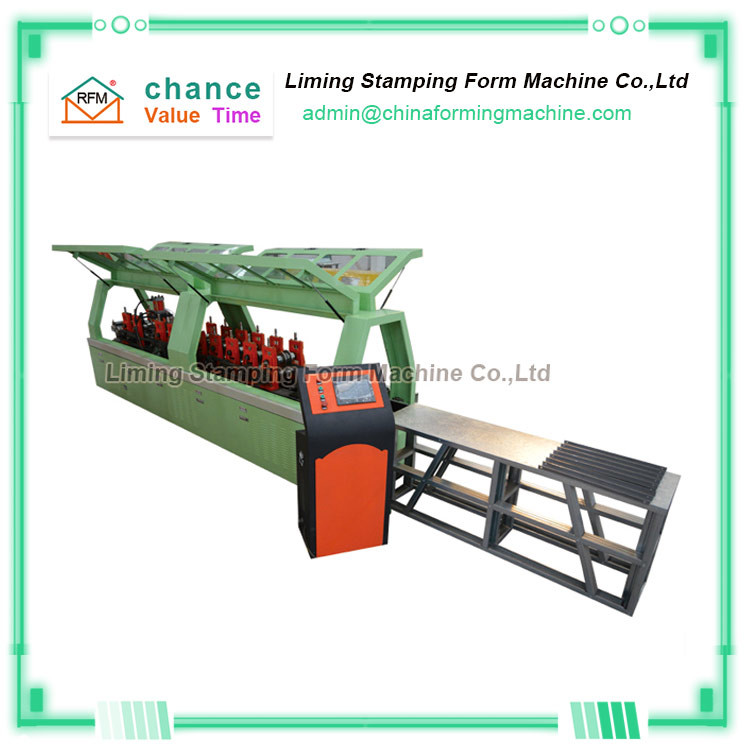

Steel C Channel Roll Forming Machine C U Shape Profile Section Light Steel Keel Machine
Usually use "Steel c channel roll forming machine C U shape profile section light steel keel machine " as a partition to produce C-shaped steel "C-shaped groove type C-shaped U-shaped light steel keel forming machine" and U-shaped keel profile The mass itself is small, which can reduce the load on the floor and slab layer, and its thin thickness can increase the use area of the building.
The C-shaped and U-shaped keel profiles produced by "Steel c channel roll forming machine C U shape profile section light steel keel machine " also have sound insulation, waterproof, and fire-proof performance. Considering that the room interval varies with the use requirements, it is also easy to disassemble.
C-shaped and U-shaped keel-shaped building partition walls manufactured by "Steel c channel roll forming machine C U shape profile section light steel keel machine " are components that separate spaces and are non-load-bearing walls. Therefore, the C-shaped and U-shaped keel profiles produced by the "Steel c channel roll forming machine C U shape profile section light steel keel machine " can be reused.
Technical Parameters of Steel C Channel Roll Forming Machine C U Shape Profile Section Light Steel Keel Machine
1. Matching material: Galvanized or PPGI
2. Material thickness range: 0.2-0.8mm
3. Forming speed: 0-40m/min
4. Main power: 7.5KW
5. Quantity of roller:12
6. Shaft Material and diameter: 50 mm, material is 45CR
7.The way of driving:Gear
8. Controlling system: PLC(Delta)
9. Voltage: 220V/ 3phase/ 60 Hz
10.Material of forming rollers: Cr12,HRC58-62
11.Material of cutter blade: Cr12 mould steel with quenched treatment,HRC 58-62℃
