| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-light 20 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type: | Roll Forming Machine | Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Production Capacity:: | 20-30m/min | Dimension(L*W*H):: | 11000 X 1400 X 1400mm |
| After-sales Service Provided:: | Online Support, Field Installation, Commissioning And Training, Video Technical Support, Engineers Available To Service Machinery Overseas | Core Components:: | Gear, PLC |
| Key Selling Points:: | Automatic | Warranty: | 24 Months |
| Control System:: | PLC And Touch Screen | ||
| Highlight: | Furred Ceiling Roll Forming Machine,C Shape Stud Making Machine,Furred Stud Making Machine |
||

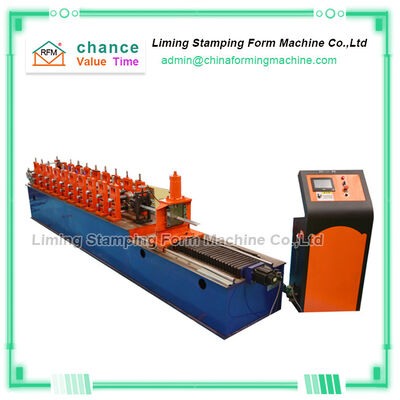

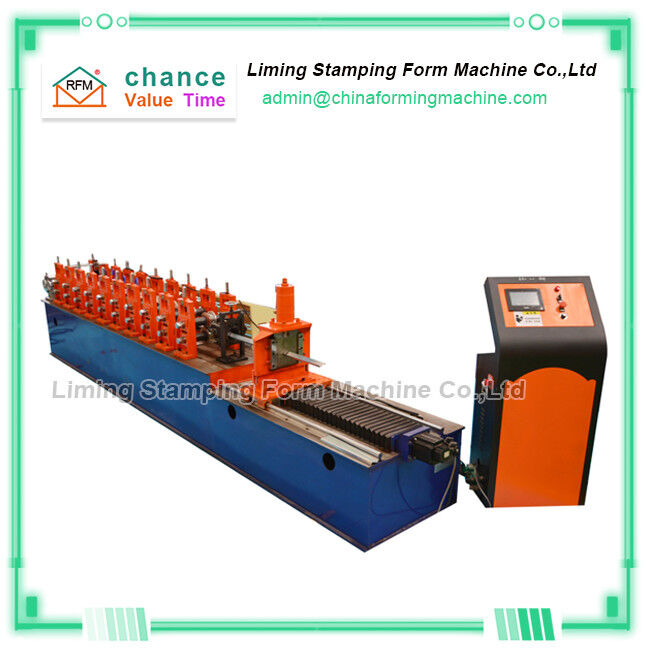

Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine
The partition wall constructed with the profile produced by the "Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine " is a non-load-bearing wall, which is different from the traditional load-bearing wall.
Most of the partition walls made of profiles produced by "Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine " can be disassembled and reassembled, with high repetition rate and high cost performance.
The partition wall made of profiles made of "Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine " has light specific gravity, high strength, moderate thickness, easy installation, reusable, sound insulation, moisture-proof, and fire-proof Environmental protection.
According to different construction methods, the types of partition walls can be divided into three categories: block partition walls, vertical reinforced partition walls and plane partition walls.
"Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine " The production capacity of C-shaped partition wall keel products are widely used in hotels, terminals, passenger stations, stations, theaters, shopping malls, factories, office buildings , Refurbishment of old buildings, interior decoration, ceilings and other places.
Technical Parameters of Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine
| Main motor power | 4kw, AC motor, side motor to save space (Brand: Guomao which made in China) |
| Profile steel thickness | 0.4-0.7mm GI sheet |
| Machine Voltage, Frequency, Phase | 380 V, 50 Hz, 3Phase |
| Roll station | about 8stations +1 station of rectify (according the final design) |
| Roller material | SAE1045, hardness and chrome plated surface |
| Shaft diameter | 56mm material: SAE1045 |
| Machine roll forming speed | 0-15m/min (not including punching and cutting time) |
| Machine structure | adopt wall panel which is much stronger |
| Transmission | by chain, 1.0inch |
