| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-light 22 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type: | Roll Forming Machine | Tile Type:: | Steel |
|---|---|---|---|
| Production Capacity:: | 25-35m/min | Dimension(L*W*H):: | 4700*1600*2480mm |
| After-sales Service Provided:: | Online Support, Field Installation, Commissioning And Training, Video Technical Support, Engineers Available To Service Machinery Overseas | Core Components:: | Gear, PLC |
| Roller Material:: | Cr12 | Warranty: | 24 Months |
| Control System:: | PLC And Touch Screen | Middle Plate Thickness:: | 18mm |
| Highlight: | ISO Keel Manufacturing Machine,C U Channel Roll Forming Machine,ISO U Channel Roll Forming Machine |
||

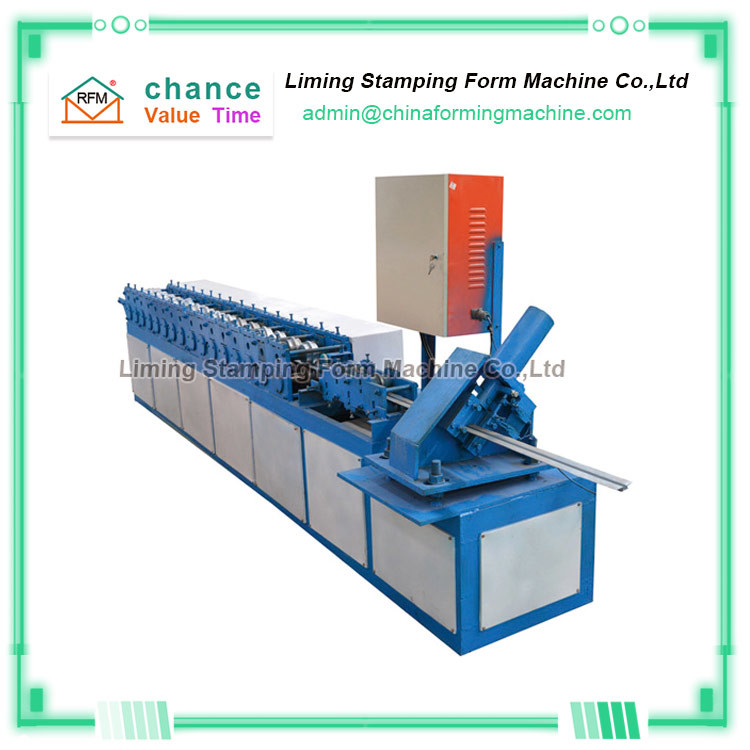

Light Steel C U Shape Channel Roll Forming High Quality Hat Keel Making Machine
Have you encountered these problems?
1. Too many machine programs and low production capacity,
2. The quality of the machine is not high, and product quality cannot be guaranteed if errors occur.
Features of "Light Steel C U Shape Channel Roll Forming High Quality Hat Keel Making Machine ":
1."Light Steel C U Shape Channel Roll Forming High Quality Hat Keel Making Machine " is an assembly line integrated forming machine controlled by PLC electronic control system, fool operation and online video teaching, which can ensure that you can operate flexibly for a few minutes.
2. "Light Steel C U Shape Channel Roll Forming High Quality Hat Keel Making Machine " choose different roll materials according to the product material. Each set of rollers uses various processes, such as rough turning heat treatment milling machine, fine turning and so on. Ensure precise dimensions and high hardness and toughness.
3. "Light Steel C U Shape Channel Roll Forming High Quality Hat Keel Making Machine " is equipped with die cutting to ensure cutting accuracy, no waste, and no deformation.
Technical Parameters of Light Steel C U Shape Channel Roll Forming High Quality Hat Keel Making Machine
| 1. |
Power requirement
|
Type | 380v/3ph/50hz | |
| Main Motor power | 5.5kw | |||
| Cutter power | 4kw+4kw+2.3kw | |||
| 2. | Forming speed(m/min) | 0-45m/min max | Not include the time of cutting | |
| 3. | Forming stations | 12 stations | ||
| 5. | Material of rollers | CR12 | ||
| 6. | Thickness of structure | 30mm | ||
| 7 | Forming shaft diameter(mm) | 50 | ||
| 8 | Drive | Gear box | ||
| 9 | Type of cutting | Hydraulic cutting | ||
| 10. | Control system | PLC xinjie | ||
| 11. | Install dimension(depend on the final design) | 4.8m×0.6m×1.2m | Without panel length | |
| 12. | Total weight (Approx) | 2.3T | Depend on final design | |
| 13. | Screen | Text screen /touch screen | ||
