| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-light 29 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type: | Roll Forming Machine | Voltage:: | Three-phrase 380V/220V |
|---|---|---|---|
| Production Capacity:: | 25-35m/min | Dimension(L*W*H):: | 2100x800x1550 Mm |
| After-sales Service Provided:: | Online Support, Field Installation, Commissioning And Training, Video Technical Support, Engineers Available To Service Machinery Overseas | Feature: | High Quality C U L Omega Drywall Metal Furring Channel Forming Machine |
| Roller Material:: | Cr12 | Warranty: | 24 Months |
| Control System:: | PLC And Touch Screen | Middle Plate Thickness:: | 18mm |
| Highlight: | 380V Metal Stud Framing Machine,35m/min Keel Roll Forming Machine,35m/min Metal Stud Framing Machine |
||

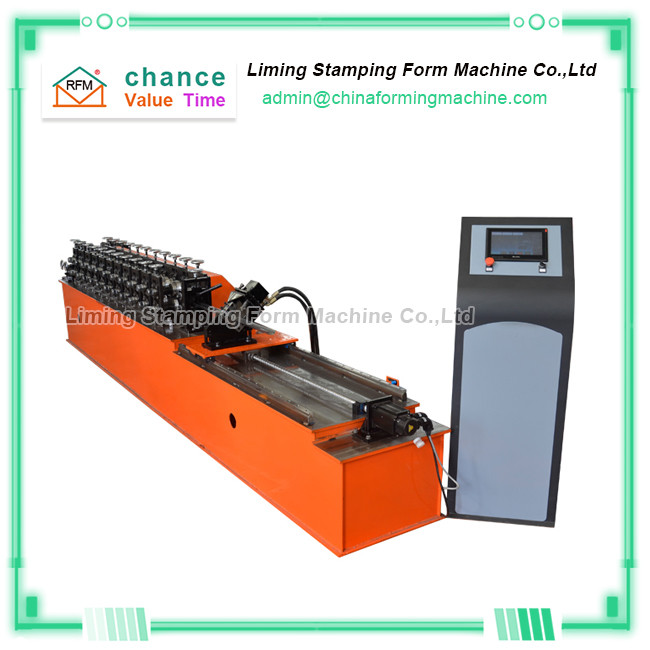

Light Steel Stud And Truss Frame Machinery Omage Keel For Building Keel Roll Forming Machine
In the construction and installation of agricultural greenhouses, considering the load-bearing capacity, structural strength, and corrosion resistance of the greenhouse, Omega keel is selected as the skeleton of the greenhouse, so an Omega keel forming machine is required.
The all-intelligent Omega keel forming machine produced by LIMING adopts the casting structure to discharge, and the precision machining Gr12 forming wheel is more practical and durable. Multi-pass molding ensures the perfect Omega keel forming. At the same time, the Omega keel forming machine also has punching and cutting. One body, strong hydraulic motor power, to ensure that your production speed is faster, higher efficiency, fully CNC industrial computer control, easy to operate
The several-character keel products produced by the Omega keel forming machine have been easily installed, have no solder joints, have the characteristics of beautiful appearance, corrosion resistance, high structural strength and large load-bearing capacity, and are well received by users
Technical Parameters of Light Steel Stud And Truss Frame Machinery Omage Keel For Building Keel Roll Forming Machine
|
Light Steel Stud And Truss Frame Machinery Omage Keel For Building Keel Roll Forming Machine |
||
|
1 |
Structure |
Cast Iron Roller Fixer |
|
2 |
Main Power |
5Kw Siemens Motor |
|
3 |
Forming Stations |
12 Stations |
|
4 |
Driving Type |
Gear Driving |
|
5 |
Diameter of Shaft |
50mm |
|
6 |
Max. Rolling Speed |
45m/min or Higher Speed As Required |
|
7 |
Material of Roller |
Cr12 with Quenched Treatment |
|
8 |
Material of Blade Mould |
Cr12, Quenched 58-62 |
|
9 |
Cutting Type |
Hydraulic Mould Cutting(or Flying Cutter, without stop) |
|
10 |
Length Cutting Tolerance |
± 1.0mm |
|
11 |
Electrical Requirement |
380V, 50Hz, 3Pha |
