| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-light 30 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type: | Roll Forming Machine | Voltage:: | 380V 50Hz 3phases |
|---|---|---|---|
| Production Capacity:: | 50m/min | Dimension(L*W*H):: | 2100x800x1550 Mm |
| After-sales Service Provided:: | Online Support, Field Installation, Commissioning And Training, Video Technical Support, Engineers Available To Service Machinery Overseas | Feature: | High Quality C U L Omega Drywall Metal Furring Channel Forming Machine |
| Weight:: | 4.5Tons | Warranty: | 12months |
| Control System:: | PLC And Touch Screen | Middle Plate Thickness:: | 18mm |
| Highlight: | Light Keel Stud And Track Roll Forming Machine,13 stations Stud And Track Roll Forming Machine,Stud And Track Roll Forming Machine |
||

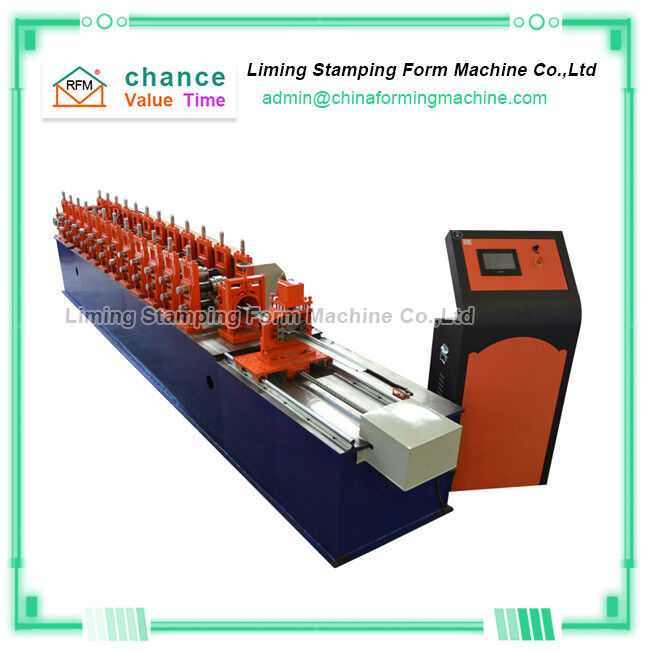

Metal Stud Roll Forming Machine,Automatic High Speed Light Keel Roll Forming Machine
Use "Metal Stud Roll Forming Machine,Automatic High Speed Light Keel Roll Forming Machine" to produce Omega kee
"Metal Stud Roll Forming Machine,Automatic High Speed Light Keel Roll Forming Machine" adopts uncoiling and unwinding, leveling, punching, slotting, embossing, cutting, rolling forming, cutting edge bending, CNC positioning edge bending Bend and other technologies. The Omega keel produced can be widely used as a support frame in the construction industry, and can also be used in the construction of greenhouses.
"Metal Stud Roll Forming Machine,Automatic High Speed Light Keel Roll Forming Machine" adopts the emerging cold-formed automatic processing technology, so that the products produced have the advantages of high strength, light weight, low material consumption, and beautiful appearance. Enhance the core competitiveness of products.
"Metal Stud Roll Forming Machine,Automatic High Speed Light Keel Roll Forming Machine" can add automatic punching of various holes, brand trademarks, etc., which can help you quickly promote and seize the market.
Technical Parameters of Metal Stud Roll Forming Machine,Automatic High Speed Light Keel Roll Forming Machine
| 1 | Width of feeding material | 120/150/300mm coil sheet or customized |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 15-30 m/min |
| 6 | Rollers' material | 45# steel with 0.05 mm chrome |
| 7 | Shaft material | 45# steel with 0.05 mm chrome |
| 8 | Weight | 4.5 tons |
| 9 | length | 5.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 3 tons |
| 13 | Motor | 5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter |
