| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Dapeng 3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Voltage:: | 380V,50Hz,three Phrases; Customized | Shaft Material:: | 45#steel |
|---|---|---|---|
| Condition:: | New | Dimension(L*W*H):v: | 5.1*1*1.7m |
| Production Capacity:: | 60-100m/min | PLC:: | Mitsubishi/delta/siemens |
| Roller Material:: | 45#steel Chrome Plated | Pre-feeding System:: | Straightening |
| Cutting:: | Servo Tracking Cutting | ||
| Highlight: | u shaped keel making machine,100m/min keel making machine,delta keel making machine |
||
In the early stage of hotel decoration, in order to ensure the beauty of the interior and the division of the area, suspended ceilings and partitions are generally used. For the rapid installation and subsequent disassembly of the suspended ceilings and partitions, people generally choose C-shaped keels of different sizes to be used together. To ensure that the ceiling and partition walls are firm, if you need to produce C-shaped keels, we can provide you with U-shaped keel machines.

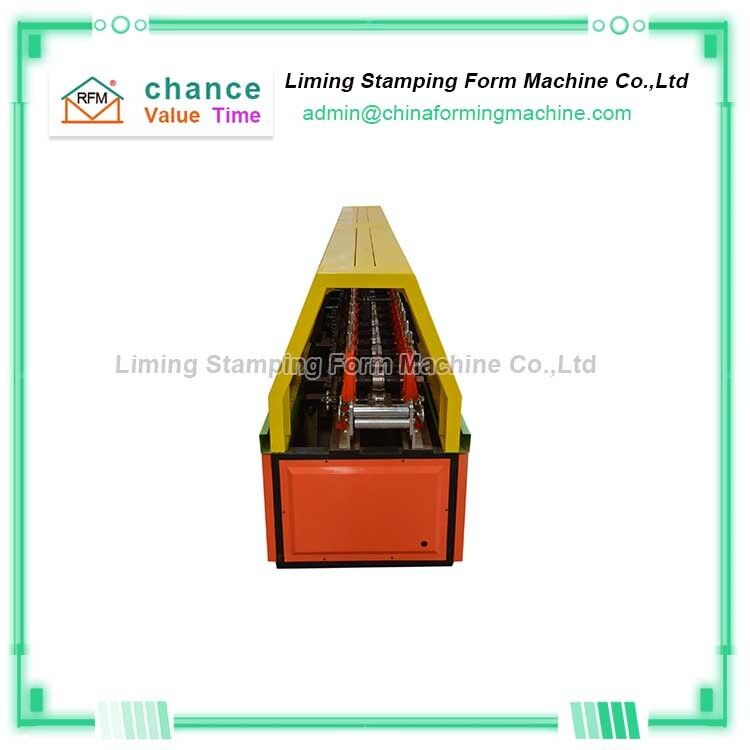

U-shaped keel machine can produce various types of U-shaped keel, and the type change is simple and easy to operate, which can help you save the cost of buying other types of U-shaped keel machines.
The U-shaped keel machine is also equipped with servo die cutting, which makes the die cutting and forming speed constant and achieves the effect of rapid cutting, thereby helping high-efficiency production.
The U-shaped keel machine is controlled by the PLC programming system, and it can be automatically produced by filling in the data. The entire process can be completed by only one person, which can help you save the cost of employment and reduce the production process.
The U-shaped keel machine is also equipped with safety devices to ensure that the U-shaped keel machine will not be damaged by equipment and personnel during operation, and achieve the purpose of safe and efficient production.
Technical Parameters of High output One machine with multiple U-shaped keel machines.
| Main Forming machine | Forming steps | 12 steps |
| Shaft diameter | 50mm | |
| Machine stand | Individual Arch Plate | |
| Machine frame | steel plate welded | |
| roller material | Cr12 | |
| shaft material | 45# steel with quenching and tempering | |
| Transport | By gear | |
| Power of main machine | 4kw | |
| Voltage | 380V-50HZ-3P(as required) | |
| Machine dimension | 5.5*0.8*1.5m | |
| Machine weight | About 2.5T |
