| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM- purlin 3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Farms, Construction Works | Weight:: | 5 Tons |
|---|---|---|---|
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Reducer Type:: | 250# |
| Key Selling Points:: | Long Service Life | Warranty:: | 18 Months |
| Motor Brand:: | China Famous Brand | Dimension(L*W*H):: | 6500mm*1500mm*1500mm |
| Highlight: | 0.6mm keel roll forming machine,old house renovation keel forming machine,high speed keel roll forming machine |
||

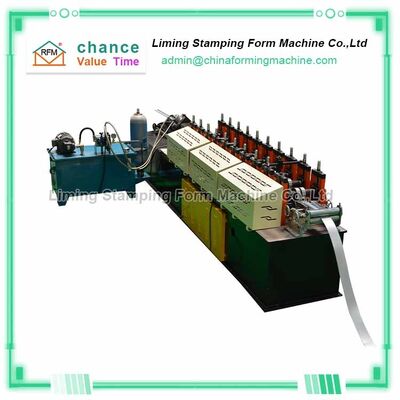

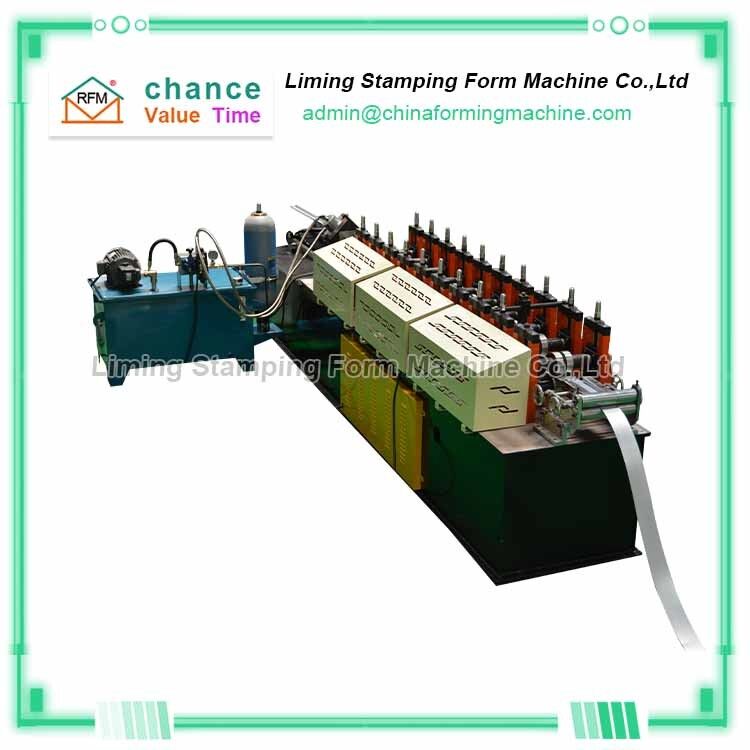

Old house renovation High-speed cutting keel roll forming machine
High-speed keel forming machine is an equipment used to produce keel profiles.
Keel is a new type of building material. With the development of modernization in China, it has been often used in the renovation of old houses in recent years. If you need to produce keel, we can provide you with a cost-effective high-speed keel forming machine to help you produce profiles.
The high-speed keel forming machine developed by our company adopts an integrated casting medium plate to ensure the load-bearing capacity and stability of the production, which can help you produce efficiently.
The high-speed keel forming machine adopts the PLC electronic control system, the whole machine can be automatically produced by only one person operating, and the produced products are accurate in size and free of burrs. They can be installed and used directly, helping you to save measurement, cutting, etc. Multiple processes.
The high-speed keel forming machine is also equipped with a 60L automatic air-cooled pumping station, which helps you save cooling time, while also reducing the loss of the machine and increasing the service life of the machine
Technical parameters of Hotel partition with bumps, high-speed C-shaped keel forming machine
| No. | Item | Specification | |
| 1 | Steel coil | Width | As customer' need |
| Material | Gi/gl/Alu-zinc | ||
| Thickness | 0.3-0.6mm | ||
| Hardness | Normal hardness/G550/HRB90 | ||
| 2 | Forming | Frame | 300-450mm Height |
| Stations |
As design of drawing Main: 9-12 stations |
||
| Rollers |
High grade No 45# steel with hard 0.05mm chromed |
||
| Shaft | High grade No 45# steel with
hard 0.05mm chromed |
||
| Diameter of shaft |
As design of drawing Main: 55 mm |
||
| Chain | Main: 1 inch | ||
| 3 | Control | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | Main: 4 kw | ||
| Language | English or as your request | ||
| 4 | Cutting | Cutter | High grade Cr12 steel |
| Cutting system | Hydraulic | ||
| Hydraulic pump | Main: 3 kw | ||
| Cutter frame | Steel plate welding | ||
| 5 | Decoiler | Manual | 5Tons |
| 6 | Product | Receiving table | Manual |
|
Choose us, own professional service. |
|||
