| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-Shelf 6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45work days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Roller Shaft Material:: | GCr12 | Certification:: | ISO / CE |
| Dimension(L*W*H):: | 5000*800*1200Mm | Lace Of Origin:: | Hebei, China |
| Warranty: | 12month | Rolling Thinckness:: | 0.3-1mm |
| Voltage:: | 380V / 440V / 220V / 415V | Weight:: | 6T |
| Highlight: | 440v metal forming machine,380v metal forming machine,SGS metal forming machine |
||
Metal fences are widely used in our production and life, including garden fences, highway fences, municipal fences and so on. Currently, private villas and courtyard fences are popular in many cities. It is composed of three parts: fence board, horizontal strip board and fence post. Generally, the height is between 0.5 and 2 meters. They have different shapes and generally use decoration and simple protection as the main installation purpose. They are very popular in Europe and the United States.
There are many mechanical designers in our company. Whether it is color steel plate, galvanized steel plate, stainless steel plate, aluminum plate, aluminum alloy steel plate and other different materials, or different shapes and sizes, we can provide you with a complete set Metal fence plate forming machine production plan, a complete after-sales team, can provide you with a tutorial on the metal fence plate forming machine and a list of parts for the metal fence plate forming machine, which can help you quickly and skillfully use the metal fence plate forming machine

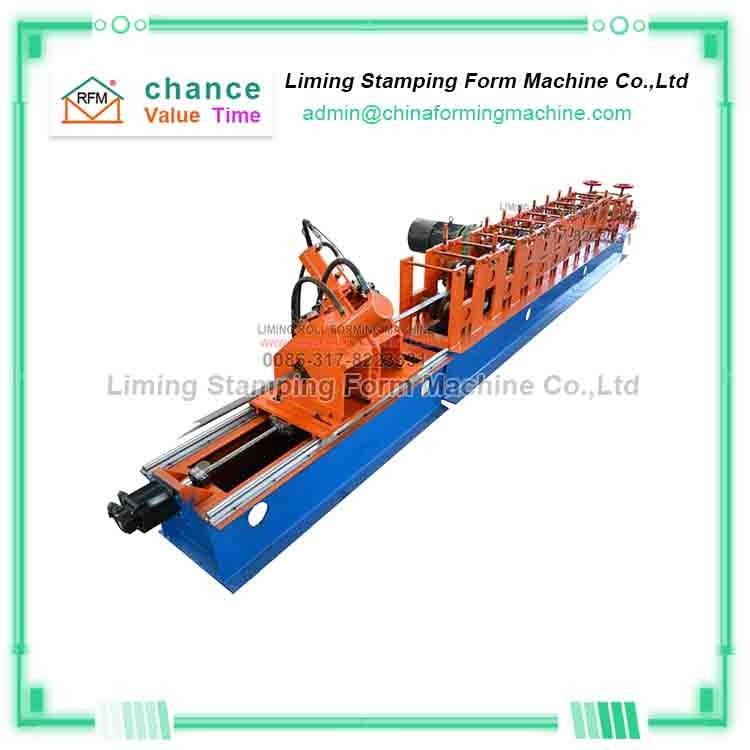

The metal fence board forming machine adopts fully automatic computer control. During the production and rolling process of the plate, the machine punches the plate into the desired sharp shape, and after the punching is completed, it automatically cuts; the machine measures the size and the finished product has high precision; the production speed of this equipment At 30 meters per minute, it is a low-cost, easy-to-operate and maintain cold-roll forming equipment.
Main Parameters Of Simple operation new technology metal fence forming machine
| Production Material :Steel Plate | |
| Operation | Full automatic |
| Voltage | AC380/50Hz |
| Quantity Of Roller | 12 rank |
| Pressure roller neck | 60 |
| Machining steel plate thickness(mm) | 1.8-2.6mm |
| Width of molding(mm) | According to drawing |
| Production line working speed | 0-15m/min |
| Cut type | Hydraulic pressure Independent cut |
| Cut bar material | cut bar use Cr12mov material,After the high temperature quenching |
| Weight | 2700Kg |
| Machine size(mm) | 5500*900*1500 |
| Roll mandrel material | 45# steel tempering,finish turning,accurate grinding process |
| Roller mold material | Bearing steel vacuum quenching,CNC finish turning |
| Production main motor power(kw) | 7.5KW |
| Hydraulic system power | 5KW |
| Drive type | Gear drive |
