| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack10 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Type: | Punching Machine | Hydraulic Oil:: | 46# Oil |
|---|---|---|---|
| Power:: | 45kw | Tile Type:: | Construction |
| Dimension(L*W*H):: | 5*1.5*1.2m | Production Capacity:: | 10-30m/min |
| Warranty: | 12month | Gear Oil:: | 18 # Hyperbolic Gear Oil |
| Voltage:: | 380v | Thickness:: | 0.8 To 1.5mm |
| Highlight: | 30m/min Rack Roll Forming Machine,45kw Rack Roll Forming Machine,GI Rack Roll Forming Machine |
||

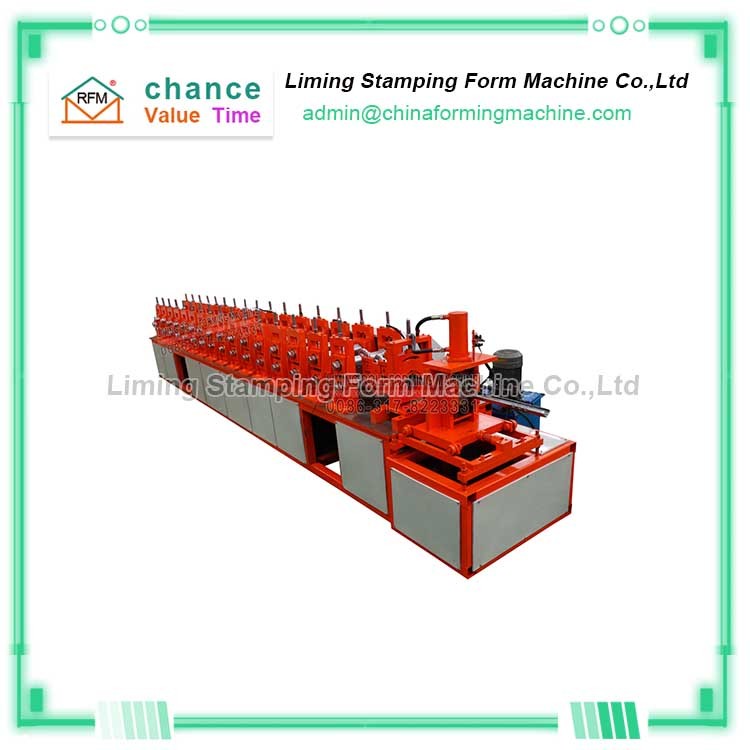

Corrosion resistance, good linearity, grape truss column forming machine
Grape racks are the most commonly used tools in agricultural greenhouses. Grape column is often used as an important tool for grape planting due to its advantages of easy installation, corrosion resistance and long service life. So very popular
The base frame of the grape frame column forming machine developed by Liming has a large CNC gantry milling machine milling plane and CNC automatic drilling and milling keyway to ensure the accuracy of the forming machine. The equipment of our company adopts one-piece casting mid-plate structure, which is easy to assemble and debug, and the benchmark accuracy is always consistent.
The grape truss column forming machine uses Siemens motors and one-inch chains as the transmission mode. The international brand Siemens motor has strong power; one-inch chain has small inertia, high precision, low noise and long life.
The grape truss column forming machine also adopts die cutting, so that the product section is clean and free of burrs. At the same time, the 50L hydraulic pump station device configured for die-cutting uses multiple metal filters inside to ensure that the hydraulic oil inside the hydraulic pump station will not have a magazine, so that the die-cutting life will be longer.
Main Parameters Of Corrosion resistance, good linearity, grape truss column forming machine
| NO. | Item | Description |
| 1 | Product' sizes | According to customer's request |
| 2 | Processing material | GI |
| 3 | Processing thickness | 1.0-2.0mm |
| 4 | Main motor power | 22kw |
| 5 | Power of hydraulic station | 7.5kw |
| 6 | Quantity of roller stations | 22 |
| 7 | Production speed | Approximate 15-25 m/min |
| 8 | Diameter of shafts | Φ90mm |
| 9 | Material of rollers | Cr12 steel with vacuum heat treatment HRC57°-60° |
| 10 | Material of shafts | 45# steel quenched and tempered |
| 11 | Material of cutting blades | Cr12 mould steel with quenched treatment |
| 12 | Size of machine | Approximate 7500mm(L)×1200mm(W)×1300mm(H) |
| 13 | Theoretical weight | Approximate 7000KGS |
| 14 | Driven method | Gearbox drive |
| 15 | Brand of PLC | Delta |
| 16 | Cut mode | flying cutting |
| 17 | Power supply | 380V 50HZ 3Phases or at buyer's requirement |
