| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Door1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 450set/Year |
| Marketing Type:: | New Product 2021 | Rolling Thinckness:: | 0.4-3mm |
|---|---|---|---|
| Dimension(L*W*H):: | 10X1.4X1.6M | Warranty: | 1.5 Years |
| Certification: | CE、BV、ISO | Voltage: | 380v 50Hz |
| Core Components:: | Motor, Pump, PLC | Weight:: | 10T |

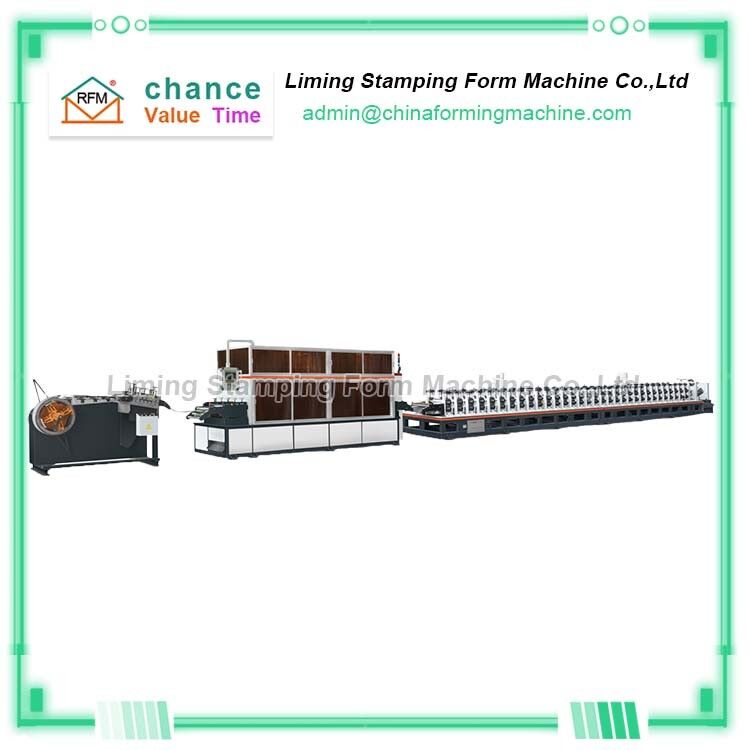

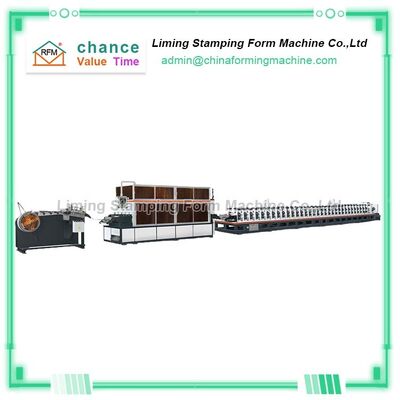

| Highlight: | touchscreen door frame roll forming machine,7inch steel door frame making machine,steel door frame making machine plc |
||
| Components Details | |
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability |
| of our products. | |
| Forming Steps | 15, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
| Treating process: tempering- finish turning, | |
| high rigidity, hard to deform. | |
| Cutting | Cr12, hardness HRC60-62. |
| Blade Material | Treating process: heat treatment- plane abrasion- wire electrode cutting. |
| Electric Components | |
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
| well-adapted to various conditions, such as moisture, | |
| electromagnetic disturbance. | |
| Frequency Converter | Delta VFD-M. It has the advantage of slowing down before cutting, |
| to ensure the length accuracy (±1mm, | |
| far better than industrial standard ±3mm). | |
| Length | Omron, made in Japan. |
| Measurement Device | It features with high accuracy and stability. |
Liming Company has a wealth of experience in designing door frame forming machines, introducing German cold-formed forming design software to design and analyze the stress and strain in the strip during the forming process. DTM simulation is used to calculate the tensile strain and compressive strain of the upper and lower layers of the plate to reduce the defects generated in the deformation pass, so that the designed roll has sufficient toughness and hardness after multiple processing procedures. The key components of the door frame forming machine are processed by CNC , Grinding machine for fine grinding, wire cutting and other finishing. The electrical appliances are controlled by PLC to realize online tracking and synchronous cutting. The door frame molding machine designed and manufactured has the advantages of high yield, convenient operation and low power consumption. Our door frame forming machines are sold at home and abroad, and are well received by customers!
