| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Door2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 450set/Year |
| Marketing Type:: | New Product 2021 | Rolling Thinckness:: | 0.4-3mm |
|---|---|---|---|
| Dimension(L*W*H):: | 10X1.5X2M | Warranty: | 2 Years |
| Certification: | CE、BV、ISO | Voltage: | 380v 50Hz |
| Core Components:: | Motor, Pump, PLC | Weight:: | 11T |
| Highlight: | 50hz door frame roll forming machine,50hz door frame forming machine,touchscreen door frame roll forming machine |
||

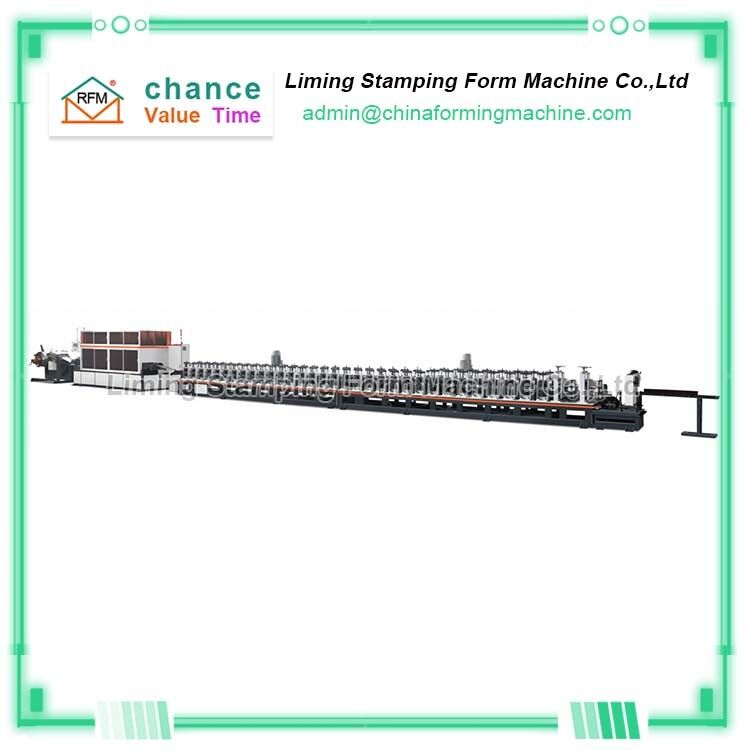

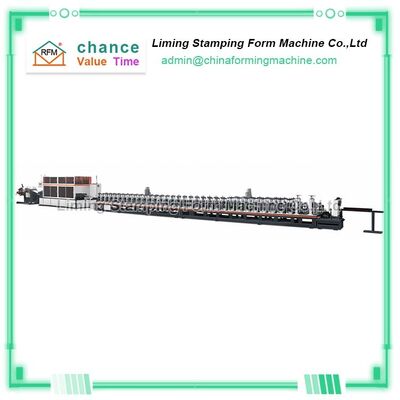

The metal door frame production line is a production line used to produce metal door frames,
The metal door frame production line is composed of an uncoiling device, a punching device, a forming host, a shearing device, a cutting 45° angle device, and a welding device. It is controlled by PLC electronic control and is easy to operate.
| Components Details | |
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability |
| of our products. | |
| Forming Steps | 15, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
| Treating process: tempering- finish turning, | |
| high rigidity, hard to deform. | |
| Cutting | Cr12, hardness HRC60-62. |
| Blade Material | Treating process: heat treatment- plane abrasion- wire electrode cutting. |
| Electric Components | |
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
| well-adapted to various conditions, such as moisture, | |
| electromagnetic disturbance. | |
| Frequency Converter | Delta VFD-M. It has the advantage of slowing down before cutting, |
| to ensure the length accuracy (±1mm, | |
| far better than industrial standard ±3mm). | |
| Length | Omron, made in Japan. |
| Measurement Device | It features with high accuracy and stability. |
The metal door frame production line is different from the metal door frame production lines on the market. The metal door frame production line molding device uses an 18mm thick middle plate as a support, so that it can withstand greater pressure without errors. At the same time, the metal door frame production line device is also equipped with In addition, bevel gears are mostly transmission methods, ensuring a high transmission ratio, and can bring you sufficient power.
The metal door frame production line also adds a 45° angle cutting device and a welding device to ensure the firmness of the door after welding and make the door frame look more beautiful, which can help you quickly open the market and win market competitiveness.
