| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Door 8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 450set/Year |
| Marketing Type:: | New Product 2021 | Rolling Thinckness:: | 0.3-3mm |
|---|---|---|---|
| Product Name:: | Door Frame Machine | Warranty: | 2 Years |
| Certification:: | CE BV STV ISO | Voltage: | 380v 50Hz |
| Weight:: | 8T | Raw Material:: | PPGI PPGL GI GL |
| Highlight: | 0.3mm steel roll forming machine,ppgi steel roll forming machine,ppgi door frame forming machine |
||

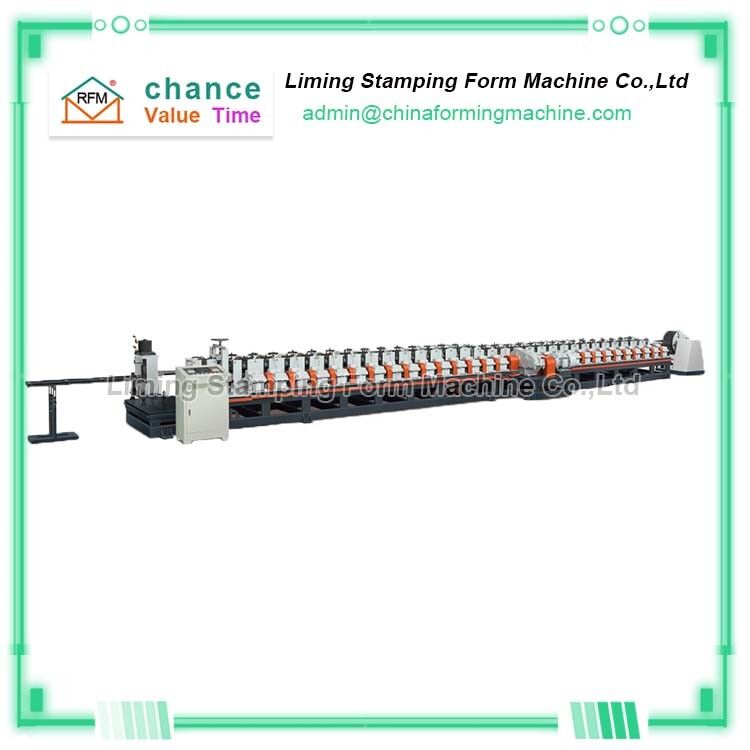

Factory customization, precise size, door frame forming machine
The door frame is an important component used to install and support the security door, and it is also the place to ensure the beauty of the security door installation. There are many patterns, sizes and specifications of the security door frame. We need to customize the production according to the size you provide. If you do not have the size of the anti-theft door frame, we can also provide you with the hot-selling version of the anti-theft door frame in your country for your choice.
| Components Details | |
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability |
| of our products. | |
| Forming Steps | 15, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
| Treating process: tempering- finish turning, | |
| high rigidity, hard to deform. | |
| Cutting | Cr12, hardness HRC60-62. |
| Blade Material | Treating process: heat treatment- plane abrasion- wire electrode cutting. |
| Electric Components | |
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
| well-adapted to various conditions, such as moisture, | |
| electromagnetic disturbance. | |
| Frequency Converter | Delta VFD-M. It has the advantage of slowing down before cutting, |
| to ensure the length accuracy (±1mm, | |
| far better than industrial standard ±3mm). | |
| Length | Omron, made in Japan. |
| Measurement Device | It features with high accuracy and stability. |
The door frame forming machines we produce all adopt an integrated casting middle plate, so that the door frame forming machine has sufficient compressive capacity, so as to ensure the stability of the door frame forming machine.
The door frame forming machine is also equipped with rollers made of Gr12 to ensure the toughness and lightness of the rollers, so that the door frame forming machine will not have the problem of scratches or damage to the rollers when producing thicker door frame profiles, thus greatly improving Improve the work efficiency of the door frame forming machine.
At the same time, the three-piece cutting blade used by the door frame forming machine is made of Gr12MOV material, so that the cut door frame profile will not be deformed, and the cutting section is tidy, which can bring you good economic benefits.
