| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Door 16 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50set/Year |
| Product Name:: | Door Frame Machine | Rolling Thinckness:: | 0.8-2mm |
|---|---|---|---|
| Control System:: | PLC(imported Brand) | Certification:: | CE BV STV ISO |
| Voltage: | 380v 50Hz | Parts Length:: | 1000-3000mm |
| Warranty:: | 2 Years | ||
| Highlight: | bv cold roll forming machine,0.8mm door frame roll forming machine,bv door frame roll forming machine |
||

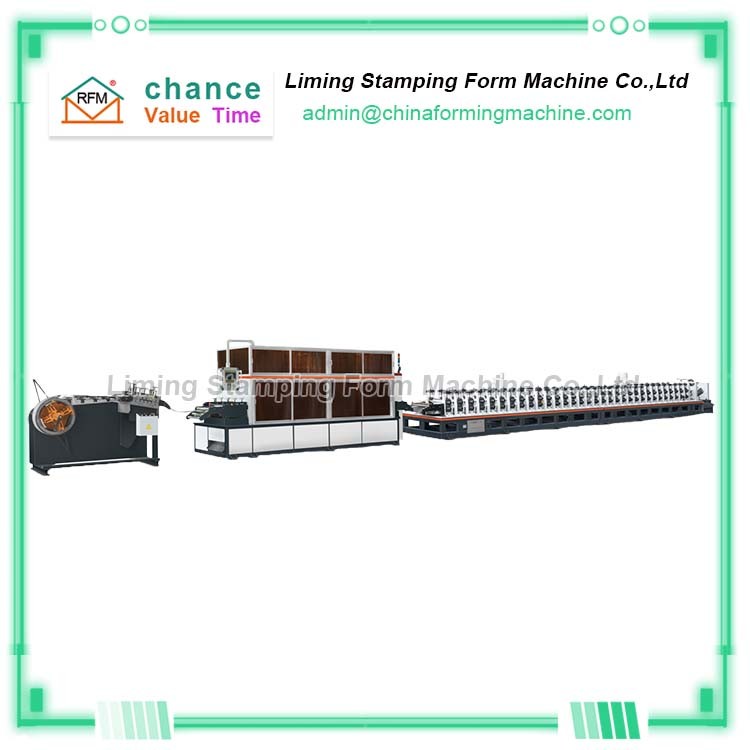

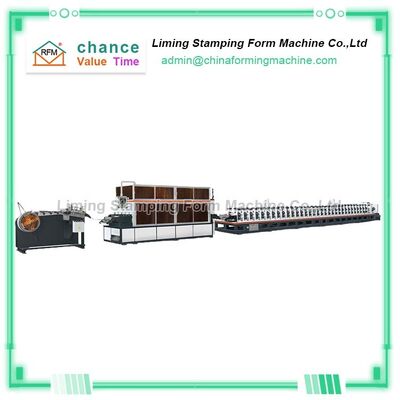

High-precision automated anti-theft door frame production line
The anti-theft door frame production line is an automated production line used to produce the door frame.
The anti-theft door frame production line needs to be customized according to the customer's actual production plant location, which can maximize the utilization of the factory. At the same time, the anti-theft door frame produced by the anti-theft door production line has the characteristics of corrosion resistance, strong pressure-bearing capacity, and convenient installation. , Loved by users.
The technological process of the anti-theft door production line:
1. Uncoiling—guided feeding—rolling forming—online punching—fixed-length cutting—receiving (the left, right and upper door frame forming process is completed)
45° cutting angle (cutting the finished profile at 45°)
2. Uncoiling—guided feeding—rolling forming—online punching—fixed-length cutting—material splicing (bottom stop forming is completed)
3. Welding: welding small pieces of door frame
| Technical parameters of anti-theft door frame | |
| The main purpose | |
| Feeding thickness | 0.8-1.8mm |
| Feeding width | 200-380mm |
| Single piece length | 1000-6000mm |
| Production speed | 0-25m/min |
| monitor rate | 15/22kw |
| plc electric controlsystem | Panasonic/Mitsubishi PLC control system (optional) |
| Encoder | Omron |
| transfer method | Chain/reducer/gear (according to profile thickness) |
| Shear blade material | Gr12MOV |
| Cut type | Die cut |
| Medium plate type | One-piece casting Plate/18mm rear welded middle plate |
| Material of forming roller | Gr12 |
| Spindle material | 45 # steel |
| Type of receiving rack | Light steel receiving rack |
| All the above parameters are for reference only. This anti-theft door molding machine is a customized equipment that needs to be selected according to your version, thickness, raw material and material. | |
For this security door frame production line, we use the method of punching before, so that the steel strip is rolled after punching, which saves the subsequent punching part. However, because the height of the door frame and the size of the hole position are not fixed, the adjustment of the hole position is more complicated and requires proficiency. The operator performs the operation. Therefore, we adopt the same operating system of the light steel villa keel machine. This process saves labor and has a higher degree of automation, and the hole position adjustment is more convenient.
