| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Door 18 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50set/Year |

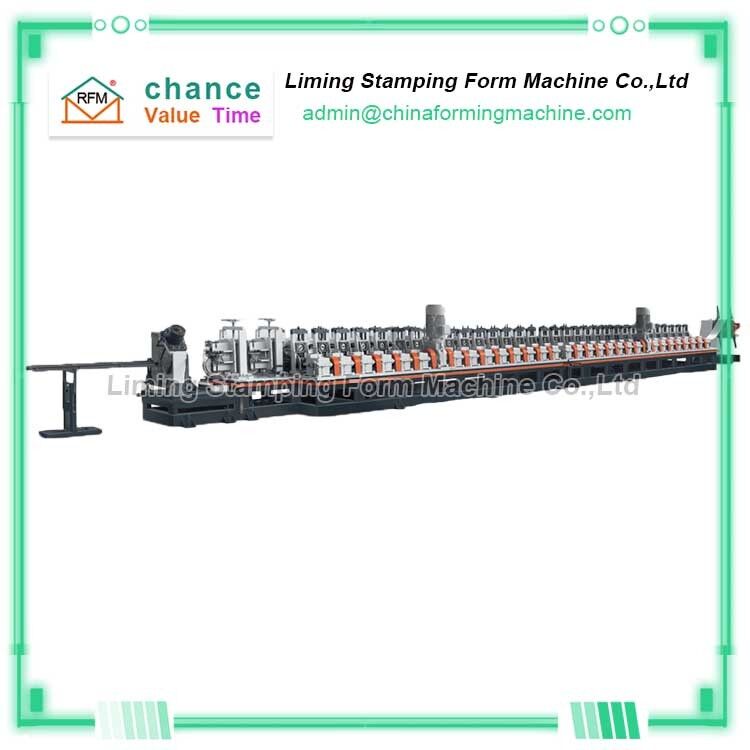

| Product Name:: | Door Frame Machine | Roller Material:: | GCr15 |
|---|---|---|---|
| Control System:: | Control System: | Place Of Origin:Place Of Origin:: | Hebei, China |
| Voltage: | 380v 50Hz | Warranty:: | 2 Years |
| Highlight: | 380v door frame roll forming machine,380mm door frame roll forming machine,gcr15 roller door frame making machine |
||
| Technical parameters of anti-theft door frame | |
| The main purpose | |
| Feeding thickness | 0.8-1.8mm |
| Feeding width | 200-380mm |
| Single piece length | 1000-6000mm |
| Production speed | 0-25m/min |
| monitor rate | 15/22kw |
| plc electric controlsystem | Panasonic/Mitsubishi PLC control system (optional) |
| Encoder | Omron |
| transfer method | Chain/reducer/gear (according to profile thickness) |
| Shear blade material | Gr12MOV |
| Cut type | Die cut |
| Medium plate type | One-piece casting Plate/18mm rear welded middle plate |
| Material of forming roller | Gr12 |
| Spindle material | 45 # steel |
| Type of receiving rack | Light steel receiving rack |
| All the above parameters are for reference only. This anti-theft door molding machine is a customized equipment that needs to be selected according to your version, thickness, raw material and material. | |
![]()
![]()
